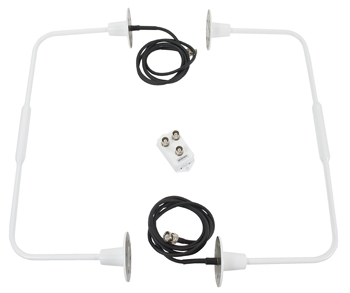

DM N48-3 VOR/LOC Balanced Loop Antenna | 108MHz–118MHz, BNC Male Connector, 4-Hole Mount (each side)

Product Description

The DM N48 LOC/VOR balanced loop antenna ensures a omni-directional radiation pattern at the horizon. This provides for maximum signal for standard VHF omnidirectional radio range localizer and navigation systems installed in lightweight aircraft, medium twin engine aircraft, and helicopters operating up to 250 MPH.

This DM N48 VOR/LOC loop antenna (EDMO# DM N48-3) has a BNC male connector, 4-hole mount on each side, and white polyurethane finish. A phasing coupler must be used for connecting the antennas.

Specifications

• Weight:
  1.12 lb (0.51 kg)
• Connector:
  BNC male
• Finish:
  white polyurethane
• Frequency Range:
  108 MHz – 118 MHz
• VSWR:
  5.0:1
• Impedance:
  50Ω
• Polarization:
  horizontal
• Radiation Patterns:
  omni-directional
• DC Resistance:
  open circuit
• Power Handling:
  receive only

Product Codes

• Mfr Part No
  n48-3
• ECCN
  7A994
• SCHEDULE B CODE
  8526106000
