DM N56-1 VOR Antenna | for Boeing 757, 767 Aircraft

Product Description

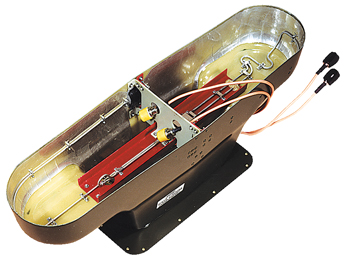

The DM N56-1 VOR antenna is designed for operation on the Boeing 757 and 767 aircraft to provide integral VHF navigation systems performance. The N56-1 antenna free-standing, balanced loop array is mounting on the tip of a vertical stabilizer and covered with a structural fiberglass housing forming the fin tip. This design allows for a lightweight and efficiency within the space available. The electrical design allows for dual receiver operation and assures CAT III preference. The omni-directional radiation patterns in the horizontal plane assures suffianent signal levels that required for R-NAV systems use.


This N56-1 VOR navigation antenna (EDMO# DM N56-1) is designed for Boeing 757 & 767 aircraft. Boeing part# S220T114-101.

Specifications

• Weight:
  5.25 kg
• Connector:
  C male
• Frequency Range:
  108 MHz – 118 MHz
• VSWR:
  6.0:1
• Impedance:
  50Ω
• Polarization:
  horizontal
• Radiation Pattern:
  omni-directional
• Isolation:
  8 dB
• Power Handling:
  receiving only
• Approvals:
  TSO C40a, DO106A D2AD1XXFXXXXXXXX

Product Codes

• Mfr Part No
  DMN56-1
• ECCN
  7A994
• SCHEDULE B CODE
  8526106000
• TSO
  C40a, D0106A
