DM PN3-3/A BroadBeamed Horn Type Antenna | TNC connector, 4200–4400 MHz, TSO

Product Description

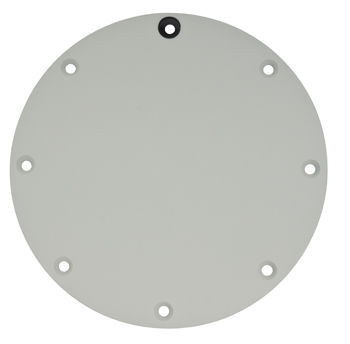

The DM PN3-3/A is a dielectric foam filled, lightweight, flush, broad-beamed horn type radar antenna. By controlling side lobes and reducing surface currents, the antennas provide very high isolation, which exceeds 85 dB at a center-to-center separation of only 20”, when used in pairs.

Specifications

• Weight:
  1.25 lb
• Dimensions:
  2.75 in (height)
• Frequency:
  4200 MHz – 4400 MHz
• Connector:
  TNC (female)

Product Codes

• Mfr Part No
  PN3-3/3A
• ECCN
  7A994
• PROAPP
  PT1084NE
• SCHEDULE B CODE
  8526.10.6000
• TSO
  C87
