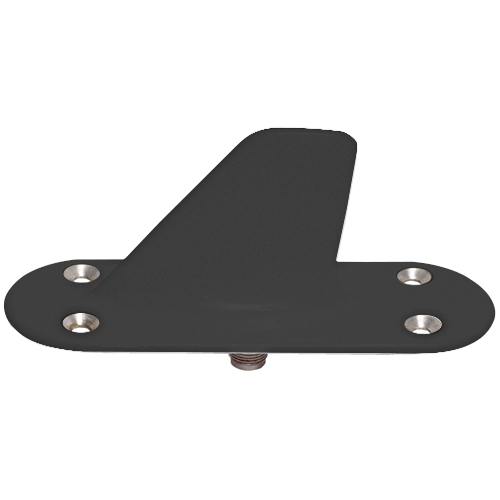

DME Transponder Blade Antenna | 960-1220MHz, C Connector, L-Band, Black

Product Description

DM NI50 antennas, which replace the DM NI49 antennas, are used with all standard L-Band equipment because of their very broad bandwidth of 960 to 1,220 MHz. Models of the DM NI50 antenna are directly interchangeable with virtually all L-Band blade and flush mounting antennas currently in service on commercial and military aircraft. While some replacements will require the use of standard adapter plates which are readily available, none require airframe modification.

The DMNI50-2-4 has Lusterless Black color with male C connector.

Specifications

• Weight:
  4 oz
• Dimensions:
  1.416 x 4.125 x 2.20 in.
• Frequency range:
  960-1220 MHz
• VSWR:
  960 – 1220 less than 1.7:1 1000 – 1100 less than 1.5:1
• Gain:
  Average at horizon 0dB
• Polarization:
  Vertical
• Impedance:
  RF 50 Ohms DC Short Circuit
• Power:
  3 kW peak 100 W peak
• Military:
  MIL-T-5422E
• ARINC:
  (ATC Transponder) 532 E (DME) 521 D
• FAA:
  (ATC Transponder) TSO-C74 (DME) TSO-C66a

Product Codes

• Mfr Part No
  DMNI50-2-4

Documentation

• DM NI50-2 Data Sheet
