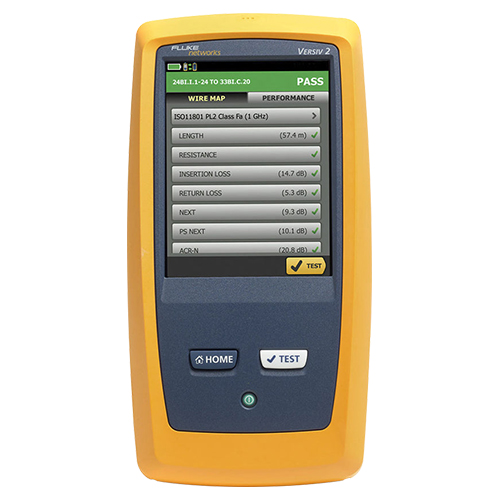

DSX-5000 CableAnalyzer | 1 GHz, Wi-Fi

FLUKE

Call For Pricing

Available to order

EDMO # DSX2-5000

MFR Part # DSX2-5000

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The DSX-5000 CableAnalyzer™ is the copper certification solution and is part of the Versiv™ cabling certification product family. The Versiv line also includes fiber OLTS certification, and OTDR modules. Versiv is designed around the revolutionary ProjX™ management system and Taptive™ user interface. ProjX tracks jobs, to ensure they’re done correctly the first time, eliminating rework. With the Taptive user interface, instrument set-up and operation are made so simple, even operators with limited cabling skills can successfully test and troubleshoot a system. Analysis of measurement data and professional test reports are easy using the familiar LinkWare™ management software.

The DSX CableAnalyzer copper test solution enables testing and certification of twisted pair cabling for up to 10 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A or Class FA. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down—setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers can not understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between profitability is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level V accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

This DSX-5000 CableAnalyzer (EDMO# DSX2-5000) features Wi-Fi capabilities and a 1 GHz maximum frequency.

Features

Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of of technicians of all skill levels
LinkWare management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with Dedicated Diagnostics, a simple test that locates the problem
Ten second Cat 6A test time contributes to the fastest way to gain certification
Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
Manage up to 12,000 test results with full graphics
Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
1 billion links reported on LinkWare management software
Compliant with proposed ISO (IEC WG9 Standard IEC61935-1) Level V accuracy requirements to 1000 MHz
Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) – IEC61935-1 & 11801-1-4, IEEE 802.3af, IEEE 802.3at, ANSI/TIA/EIA-568-C.2
Next generation balance drafts – IEEE 802.3, TIA TR42.7

Specifications

Weight:

3 lbs, 5 oz (1.28 kg)
Dimensions:

2.625 x 5.25 x 11.0 in (6.67 x 13.33 x 27.94 cm)
Maximum Frequency:

1.2 GHz
Shielded and Unshielded Pair LAN Cabling:

TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω
Permanent Link Adapters:

Plug type: shielded RJ45 Optional Plug type: Tera
Channel Adapters:

Jack type: shielded RJ45 Optional Jack type: Tera
Speed of Full 2-way Autotest of Category 5e or 6/Class D or E:

9 sec
Speed of Full 2-way Autotest of Category 6A/Class EA:

10 sec
Input Protection:

Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display:

5.7 in LCD display with a projected capacitance touchscreen
Case:

High impact plastic with show absorbing overmold
Main Unit and Remote:

Lithium ion battery pack, 7.2 V
Typical Battery Life:

8 hr
Charge Time:

Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages Supported:

English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese
Calibration:

Service center calibration period is 1 year
Operating Temperature:

32°F to 113°F (0°C to 45°C)
Storage Temperature:

-4°F to 122°F (-20°C to 50°C)
Operating Relative Humidity:

0% to 90% @ 32°F to 95°F (0°C to 35°C) 0% to 70% @ 95°F to 113°F (35°C to 45°C)
Vibration:

Random, 2 g, 5–500 Hz
Shock:

1 m drop test with and without module and adapter
Safety:

CSA 22.2 No. 61010, IEC 61010-1 2nd Edition + Amendments 1, 2
Operating Altitude:

13,123 ft (4,000 m)
EMC:

EN 61326-1
TIA:

Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC:

Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
