Product Description

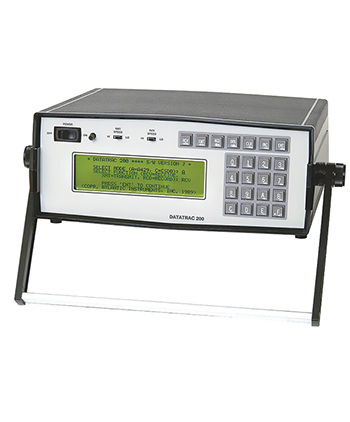

The Datatrac 200 CSDB Database Analyzers advanced features support two avionic databus standards, ARINC 429 and CSDB (Commercial Standard Data Bus). The DT200 has extensive receive and transmit capabilities and can manage many data words, display subfields, and manipulate data using features such as freeze, scroll, and clear. The DT200 also provides dual operation in either ARINC 429 or CSBD modes, data display in hexadecimal, binary, or engineering units, and general purpose recording mode for lab or flight tests.

Features

CSDB capability for Collins ProLine Avionics
Light weight and battery operated
Manages multiple data words
Clearly displays subfields
Manipulates data with such features as FREEZE, SCROLL, and CLEAR
Receives and displays data in hexadecimals, binary, or engineering units
Transmits multiple words at selected rates
Identifies failures with breakpoint trigger pulse and history features
Converts digit data to DC
General purpose recording mode for lab or flight test
Presents data transients as graphic time plots
Operates anywhere for up to 6 hours on rechargeable battery
Easy setup with menu selections

Specifications

Weight:

7.5 lb
Dimensions:

12.5 x 11.6 x 5 in.
Power requirements:

7.0 Watts at 110 VAC/60 Hz 8.4 Watts at 28 VDC or internal battery
Display:

1.7"" x 6.0"" LCD with 8 lines x 40 char. mode or 64 x 256 dot graphics mode. Front panel dimming control
