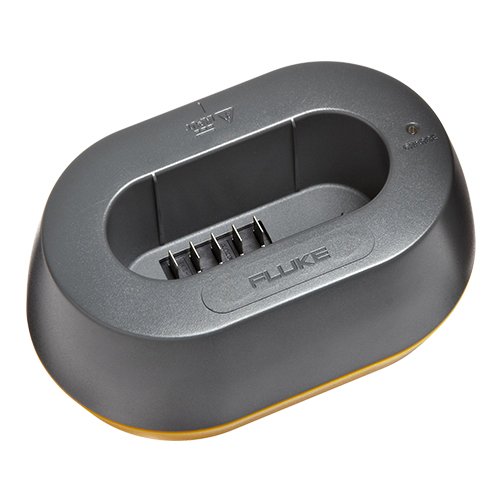

Fluke EBC290 External Battery Charger | For BP290 and BP291

Product Description

This External Battery Charger (EDMO# EBC290) is compatible with the BP290 and BP291 Li-ion batteries used in Fluke Test Tools. It is powered by the BC190 or BC430 Power Adapter as supplied with Test Tool Fluke 190 Series II, and is provided with a microprocessor controlled charging circuit to optimally charge the battery.

Specifications

• Weight:
  85 g
• Dimensions:
  44 x 65 x 100 mm
• Adapter Requirement:
  17.8 V, 0.84 A
• Input Current Limiter:
  714 mA ± 5%
• Input Voltage Range:
  15–23 V
• Battery Charge Time:
  BP290: < 3 hours BP291: 5.5 hours
• Operating Temperature:
  0 °C to 45°C
• Storage Temperature:
  -20°C to 60°C
• Battery Charge Disable Protection:
  54°C ± 3°C (smbus controlled), 58°C ± 3°C (hardware controlled)
• Operating Humidity:
  0 °C to 10°C: No precipitation (Non-condensing) 10 °C to 30°C: 95 ± 5% 30 °C to 40°C: 75 ± 5% 40 °C to 45°C: 45 ± 5%
• Storage Humidity:
  No precipitation (Non-condensing)

Product Codes

• Mfr Part No
  EBC290
• SCHEDULE B CODE
  8504.40.9580
