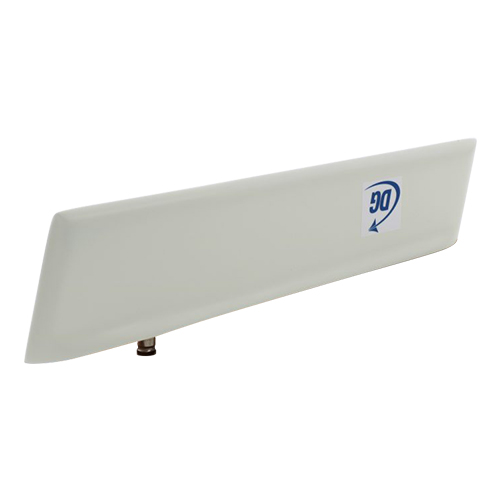

EMB10-14 Marker Beacon Antenna | 13.25 in. Length, 50 Ω, 75 MHz, White Polyurethane

Product Description

The EMB10-14 Marker Beacon Antenna is designed to be mounted on the metal undersurface of an aircraft. This location provides an unobstructed downward pattern for the reception of the 75-MHz marker signal. This antenna is constructed of fiberglass and epoxy materials. The low-profile design dramatically reduces drag. The one-piece fiberglass radome is securely bonded to an aluminum base which is chemically treated to resist corrosion. Internal components are foamed in place to avoid problems that may arise due to aircraft shock and vibration.

Specifications

• Weight:
  1.0 lbs (0.45 kg)
• Height:
  2.75 in (69.9 mm)
• Frequency:
  75 MHz
• VSWR:
  2.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Downward looking
• Impedance:
  50 Ohms
• Power:
  Receive Only
• Material:
  Fiberglass
• Finish:
  White Polyurethane
• Connector:
  BNC
• Speed Rating:
  600 knots
• Temperature:
  -62°C to 71°C
• Vibration:
  5 gPK
• Shock:
  15 gPK, 10 ms
• Approvals:
  FAA TSO-C35d

Product Codes

• Mfr Part No
  EMB10-14
• SCHEDULE B CODE
  8529.10.4000
