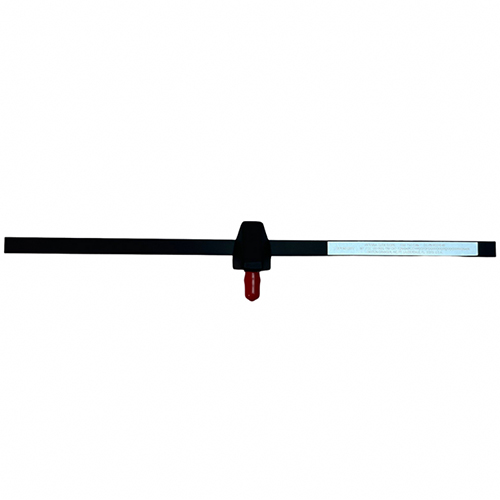

RGS10-48 Glideslope Antenna | 329-335 MHz, 50 Ω

Product Description

The RGS10-48 receiving antenna is designed to operate over the frequency range of 329 to 335 MHz. It is horizontal polarized and designed to receive the glideslope portion of the ILS. Constructed of epoxy materials and fiberglass, the antenna is flexible, thus allowing its mounting inside a nose radome, on the inside surface of a windshield, vertical structure member, or any flat or concave surface.

Specifications

• Weight:
  0.188 lbs (0.085 kg)
• Length:
  15.28 in (388.1 mm)
• Material:
  Fiberglass
• Finish:
  Flat Black
• Connector:
  BNC
• Frequency:
  329-335 MHz
• VSWR:
  3.0:1
• Polarization:
  Horizontal
• Gain:
  329 MHz: -2.5 dBi 332 MHz: -1.0 dBi 335 MHz: -2.0 dBi
• Impedance:
  50 Ω
• Power:
  Receive Only
• Temperature:
  -55 °C to +70 °C
• Vibration:
  Funct: 4.12 gRMS End: 5.83 gRMS
• Shock:
  6 g, 11 msec
• Federal Specifications:
  TSO-C34e

Product Codes

• Mfr Part No
  RGS10-48
• SCHEDULE B CODE
  8529.10.4000
