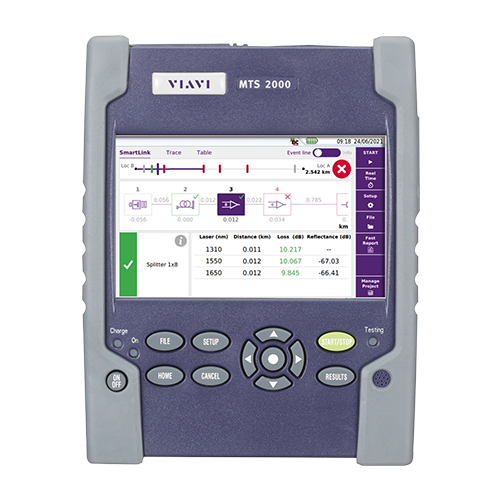

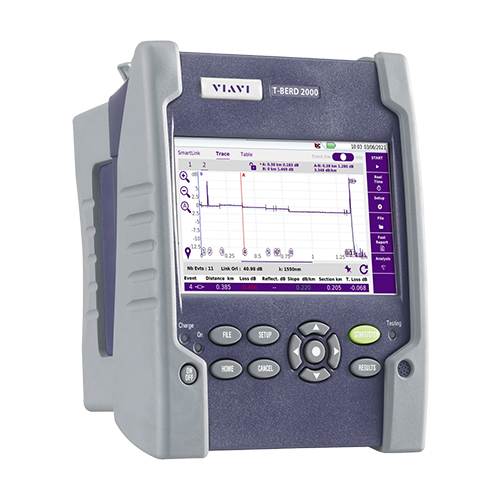

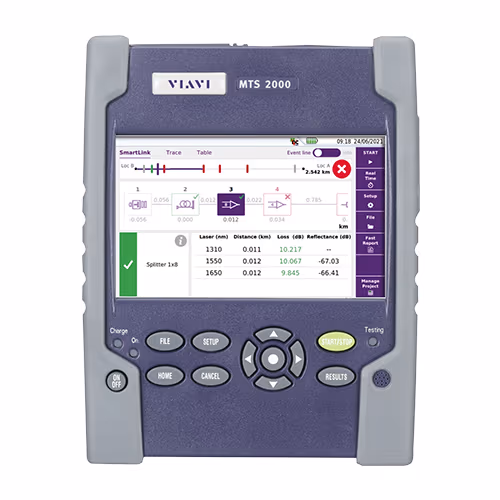

T-BERD/MTS-2000 Handheld Modular Test Set

Product Description

The T-BERD/MTS-2000 is a handheld multi-test platform that provides field technicians with a single handheld unit to install, turn-up and maintain these networks to the highest standards.

Its innovative design and hands-free bag ensure that all essential fiber test tools are close at hand, whatever the job or location. A large color screen with graphical user interface drives simple operation and optimal workflow in the field.

Test capabilities include a range of OTDR modules for multimode and single-mode testing, including CWDM & DWDM OTDR, as well as a range of FiberComplete modules for automated insertion loss/optical return Loss (IL/ORL), OTDR and fault finding. Both OTDR and FiberComplete modules are passive optical network (PON) optimized. The unit is also ready for connector end face pass/fail analysis to IEC standards with a digital analysis microscope.

The CWDM-OSA and DWDM-OCC modules also enable turn-up and troubleshooting of coarse or dense wavelength division multiplexing (CWDM DWDM or Hybrid) networks.

Specifications

• Weight:
  2.67 lb ( 1.21 kg)
• Dimensions:
  6.9 x 5.4 x 3.2 in ( 175 x 138 x 80 mm)
• Display:
  5-inch (12.5 cm) Capacitive Touchscreen – 800 x 480 WVGA
• Interfaces:
  2 x USB 2.0 ports, 1 x RJ45 LAN 10/100/1000 Mbit/s port, 1 x mini USB 2.0, 1 x 2.5 mm female jack port (headset), built-in WiFi 802.11 b/g/n & Bluetooth 4.2
• Storage:
  1 GB standard (20,000 OTDR traces typical)
• Battery:
  Rechargeable Lithium-Polymer battery, up to 9 hours of operation
• Power Supply:
  AC/DC Adapter, input 100-240 V AC, 50-60 Hz; 2 A max, output 12 V DC, 24 W
• Electrical Safety:
  EN/IEC 60950-1 compliant
• Operating Temperature:
  -4 °F to 122°F ( -20 °C to 50°C)
• Storage Temperature:
  -4 °F to 140°F ( -20 °C to 60°C)
• Humidity:
  5 to 95% (Non-Condensing)

Product Codes

• Mfr Part No
  ETB2000HVT
• SCHEDULE B CODE
  9030.40.0000
