FFL-100 Visual Fault Locator | Includes 1.25mm & 2.5mm Adapters

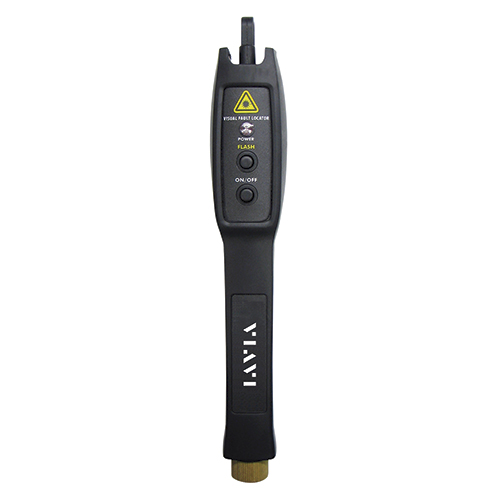

VISUAL FAULT LOCATOR/with 2.5mm and 1.25 Adapters

VIAVI

Call For Pricing

Available to order

EDMO # FFL-100

MFR Part # FFL-100

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

VIAVI Visual Fault Locators (VFL) locates optical fiber damage and breaks quickly and easily as well as problem areas in fiber cables. This tool is capable of pinpointing sharp bends, breaks, and damages in fiber, conducting end-to-end continuity tests, and performing fiber tracing and identification. The FFL-100 is equipped with a 2.5 mm interface and is compatible with SC, ST, and FC connectors. An optional 1.25 mm adapter adds compatibility with LC and MU connectors. When in use, the VFL emits a bright red (Class II) laser beam that makes damages in the fiber visible from a distance. The light can either be set to flash or to provide continuous light according to the operator's preferences.

Features

Rugged, shock-absorbing design
Visible wavelength of 650 nm
80+ hours of operation on continuous mode
High powered 1 mW laser for single-mode (>7 km) and multi-mode (>5 km) connectors
Continuous or flash illumination
Universal connector interface for quick and easy connection
2.5 mm connector input (1.25 mm adapter included with FFL-100)
Includes soft-sided carrying case with belt loop and AAA batteries

Specifications

Dimensions:

22 x 3.5 x 3.0 cm (8.7 x 1.4 x 1.2 in)
Weight:

150 g (5.3 oz) with 2xAAA batteries
Fiber Compatibility:

Single-mode, multi-mode
Wave Length:

650 nm (visible)
Laser Safety Rating:

Class II
Output Power:

1.0 mW, maximum
Output Modes:

Continuous and flashing
Range:

>7.5 km, single-mode >5 km, multi-mode
Connector Interface:

Universal 2.5 mm (fixed) Universal 1.25 mm adapter (included)
Controls:

ON/OFF; Continuous/Flashing
Battery Type:

2xAAA
Battery Life:

80+ hours on continuous
Carrying Case:

Soft-sided with belt loop
Safety:

1992, EN 61010-2, CE
