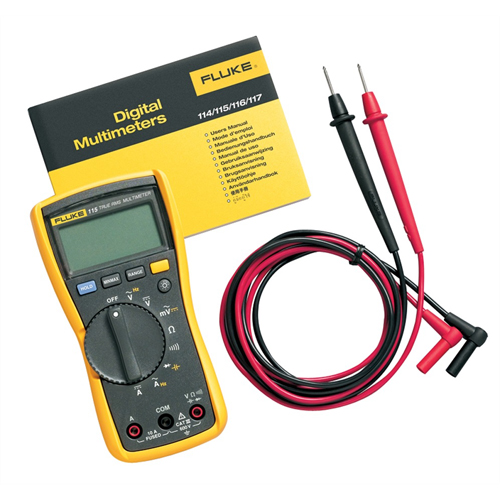

Fluke 115 Field Technicians Digital Multimeter


FLUKE

Call For Pricing
Available to order
EDMO # FLUKE 115
MFR Part # FLUKE-115
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 115 technicians digital multimeter offers simple, one-handed operation to meet the needs of a wide variety of field service technicians. It measures true-rms voltage and current with 6000 count resolution, plus resistance, continuity, frequency and capacitance.

Features

  • Includes:
  • Holster, installed 9V battery, 4mm silicone test lead set, user manual
  • Features:
  • Measures AC and DC voltage to 600V
  • Measures AC and DC current to 10A (20 A overload for 30-seconds max)
  • Measures resistance, continuity, frequency, and capacitance
  • Provides Min/Max/Average with elapsed time to record signal fluctuations
  • Include a holster with probe holders for easy storage and one-handed operation
  • Large white LED backlight for working in poorly lit areas

Specifications

  • Weight:
    550g
  • Dimensions:
    167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
  • Battery type:
    9V Alkaline, IEC 6LR61
  • Battery life:
    400 hr (typical) without backlight
  • Operating temperature:
    -10℃ to 50℃
  • Storage temperature:
    -40℃ to 60℃
  • Maximum voltage:
    600V (between any terminal and earth ground)
  • Safety:
    IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
  • Display:
    Digital: 6,000 counts, updates 4 per second
  • Bar graph:
    33 segments, updates 32 per second

Related Products

Product Codes

  • Mfr Part No
    FLUKE-115
  • ANSI
    ANSI/ISA 82.02.01 (61010-1) 2004
  • CSA
    CAN/CSA C22.2 No. 61010-1-04
  • ECCN
    EAR99
  • SCHEDULE B CODE
    9025.19.8080
  • UL
    6101B (2003)
