Fluke 1507 Insulation Resistance Tester

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE 1507

MFR Part # FLUKE-1507

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

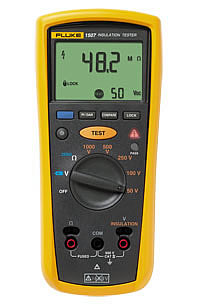

The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe, save both time and money especially when performing repetitive tests.

Features

Includes:
TL224 Test Leads, TP74 Test Probes, clips (red & black), holster and remote probe
Features:
Performs insulation tests from 0.01 MΩ to 2.0 GΩ
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Includes auto-discharge of capacitive voltage for added user protection
Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power off
Presents results on a large, backlit display
Features CAT IV 600 V overvoltage category rating
Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Specifications

Weight:

550 g (1.2 lb)
Dimensions:

5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
IP rating:

IP40
Altitude:

Operating: 2000 m CAT IV 600 V, 3000 m CAT III 600 V Non-operating (storage): 12,000 m
Vibration:

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock:

1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Maximum voltage applied to any terminal:

600 V AC rms or DC
AC/DC Voltage Measurement

Accuracy: Range: 600.0 V Resolution: 0.1 V 50 Hz to 400 Hz ± (% of Rdg + Digits): ±(2% + 3)
Input impedance:

3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced):

> 60 dB at DC, 50 or 60 Hz
Overload protection:

600 V rms or DC
Earth Bond Resistance Measurement

Range/Resolution: 20.00 Ω : 0.01 Ω 200.0 Ω : 0.1 Ω 2000 Ω : 1.0 Ω 20.00 kΩ : 0.01 kΩ
Accuracy:

±(1.5% + 3)
Overload protection:

2 V rms or DC
Open circuit test voltage:

> 4.0 V, < 8 V
Short circuit current:

> 200.0 mA
Insulation Specifications

Measurement range: 0.01 MΩ to 10 GΩ
Test voltage:

50 V, 100 V, 250 V, 500 V, 1000 V
Test voltage accuracy:

+ 20%, - 0%
Short circuit current:

1 mA nominal
Auto discharge Discharge time:

< 0.5 second for C = 1 µF or less
Live circuit indicator:

Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load:

Operable with up to 1 µF load
Measure accuracy:

50 V ±(3% + 5) 100 V ±(3% + 5) 250 V ±(1.5% + 5) 500 V ±(1.5% + 5) 1000 V ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
