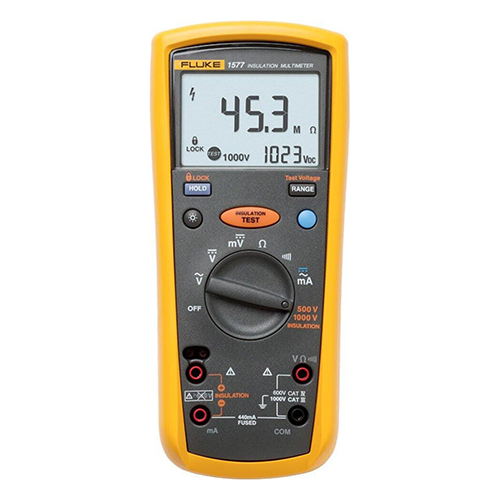

Fluke 1577 Insulation Multimeter

FLUKE

EDMO#: FLUKE 1577

MFR#: FLUKE 1577

Description

The Fluke 1577 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact and handheld unit. This multimeter provides maximum versatility for both troubleshooting and preventative maintenance.



Features

Includes:
Remote probe, Test leads, Alligator clips, Hard case, Four AA alkaline batteries, Quick Reference Guide, CD Rom with Manual

Features:

  • Insulation test voltages 500 V, 1000 V
  • Insulation test: 0.1 MΩ to 600 MΩ
  • Auto discharge of capacitive voltage: AC/DC Voltage, DC millivolts, AC/DC milliamps
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Three-year warranty
  • Auto power off to save battery power
  • True RMS
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAKTM magnetic hanging system

Specifications

Weight:
624 g

Dimensions:
203 x 100 x 50 mm (with holster)

Operating temperature:
–20°C to +55°C

Storage temperature:
-40°C to +60°C

Humidity (without condensation):
0% - 95% (10°C – 30°C)
0% - 75% (30°C – 40°C)
0% - 40% (40°C – 55°C)

Operating altitude:
2000 m

IP rating:
IP40

Warranty:
3 years

Product Codes

Mfr Part No :

FLUKE 1577

CSA :

UL 6101B (2003) No. 61010.1-04
