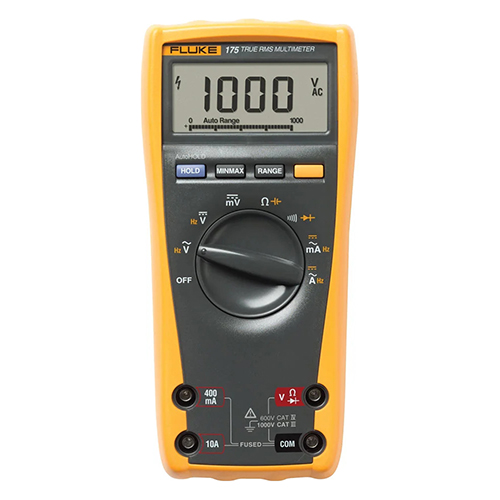

Fluke 175 True-RMS Digital Multimeter

Product Description

The Fluke 175 True RMS Digital Multimeter delivers the baseline general purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events. All inputs on the 175 are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed and VDE Pending.

Specifications

• Weight:
  420 g
• Dimensions:
  43 x 90 x 185 mm
• Battery life:
  Alkaline ~200 hours typical, without backlight
• Operating temperature:
  -10°C to +50°C
• Storage temperature:
  -30°C to +60°C
• Humidity (without condensation):
  0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
• Overvoltage category:
  EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
• Agency approvals:
  UL, CSA, TÜV listed and VDE Pending

Product Codes

• Mfr Part No
  FLUKE 175 ESFP
• ANSI
  ANSI/ISA S82.02.01
• CSA
  CSA C22.2-1010.1
• ECCN
  3A992
• SCHEDULE B CODE
  9030.32.0000

Documentation

• FLUKE 170 Series Manual
• FLUKE 170 Series Data Sheet
