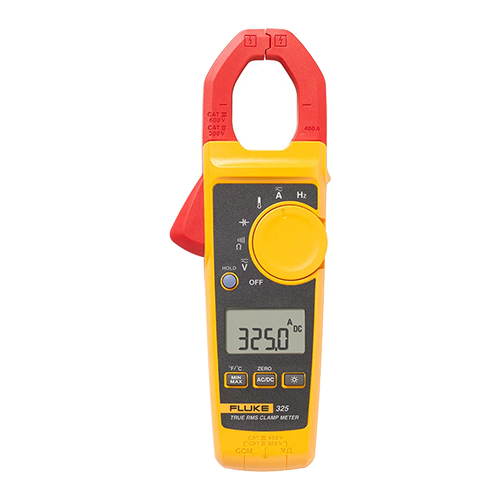

Fluke 325 True RMS Clamp Meter

Fluke 325 True RMS Clam Meter | AC/DC, 40kΩ, 500Hz

FLUKE

Call For Pricing
Available to order
EDMO # FLUKE 325
MFR Part # FLUKE 325
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 325 True-RMS Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. This rugged True-RMS clamp meter with dc current and frequency measurements troubleshoots problems safely and accurately.

Features

  • Includes:
  • Fluke 325 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case
  • Features:
  • CAT III 600 V, CAT IV 300 V safety rating
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current up to 400 A
  • Measures AC/DC voltage to 600V
  • Measures resistance to 40 kΩ with continuity detection ≤ 30Ω
  • Measures temperature from -10C to 400C
  • Measures capacitance to 1000µF
  • Measures frequency from 5Hz to 500Hz
  • Min/Max function records important values
  • Backlight and hold function captures a reading on the display

Specifications

  • Weight:
    0.62 lb (283 g)
  • Dimensions:
    8.15 x 2.95 x 1.34 in. (207 x 75 x 34 mm)
  • AC current:
    Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits (45 Hz to 65 Hz), 2.5% ± 5 digits (65 Hz to 400 Hz)
  • DC current:
    Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits
  • AC voltage:
    Range 600.0 V Accuracy 1.5% ± 5 digits
  • DC voltage:
    Range 600.0 V Accuracy 1.0% ± 5 digits
  • Resistance:
    Range 400.0 Ω / 4000 Ω / 40.00 kΩ Accuracy 1.0% ± 5 digits
  • Continuity:
    ≤ 30 Ω
  • Capacitance:
    0 to 100.0 μF / 100μF to 1000 μF
  • Frequency:
    5.0 Hz to 500.0 Hz
  • AC response:
    True-RMS

Product Codes

  • Mfr Part No
    FLUKE 325
