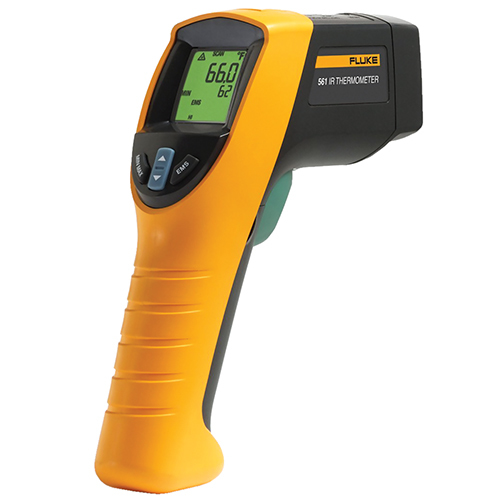

Fluke 561 HVAC Infrared & Contact Thermometer
FLUKE
EDMO#: FLUKE 561
MFR#: FLUKE-561
Description
The Fluke 561 IR and contact thermometer combines the temperature measurement functions that industrial, electrical, and HVAC/R professionals need in one tool. It can measure both infrared and contact temperature which saves users times and effort.
The Fluke 561 is ideal for measuring hot, moving, energized object in hard-to-reach places--such as motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. With the handy flexible pipe probe, or any industry standard type K mini thermocouple probe, the Fluke 561 can take super-heat or internal temperatures.
Features
Includes:
K-Type thermocouple, Fabric hook-and-loop fastener pipe probe, Hard carrying case, 2 AA batteries, Users manual
Features:
- IR thermometer for quick measurements up close, or at a distance, without a ladder
- Contact thermometry capability, compatible with all standard mini-connector type K thermocouples, preserves your investment in thermocouples
- Fabric hook-and-loop fastener pipe probe for superheat and sub-cooling and other contact and ambient measurements
- Single-point laser sighting
- Temperature range of -40°C to 550°C (-40°F to 1022°F) covers most industrial and residential applications
- Easy emissivity adjustment (Lo, Med, Hi) for measuring pipes and other shiny materials more accurately
- Lightweight and portable--only 12 oz
- No need to shut down equipment for making IR measurements
- MIN, MAX, and DIF functions help identify problems quickly
- Scan large areas or small objects quickly and efficiently
Specifications
Temperature:
-40°C to 550°C (-40°F to 1,022°F)
Display Resolution:
0.1°C (0.1°F) of reading
D:S (distance to spot selector):
Adjustable with 3 settings
Low (0.3), medium (0.7). high (0.95)
Display Accuracy:
±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
Response Time:
500 mSec (95% of reading)
Repeatability:
±0.5% of reading or ±1°C (±2°F), whichever is greater
Spectral Response:
8 µm to 14 µm
Laser Sighting:
Single point laser
Laser Shutoff:
Laser turns off above ambient temperature of 40°C (104°F)
Laser Power:
Class 2(II) operation; Output < 1 mW, wavelength 630-670 nm
Relative Humidity:
10% to 90% RH non-condensing, at < 30°C (86°F)
Power, Battery Life:
2xAA Batteries (alkaline or NiCD)
Battery Life:
12 hr
Display Hold:
7 sec
Backlit Display:
LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
Warranty:
2 yr
Operating Temperature:
0°C to 50°C (32°F to 120°F)
Storage Temperature:
-20°C to 65°C (-25°F to 150°F)
MAX, MIN, DIF Temperatures:
Yes
Thermocouple Type K Mini Adapter Input:
Compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range
Thermocouple Type K Fabric hook-and-loop Fastener Pipe Probe:
with a temperature range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F)
HVAC measurement guide:
Yes
