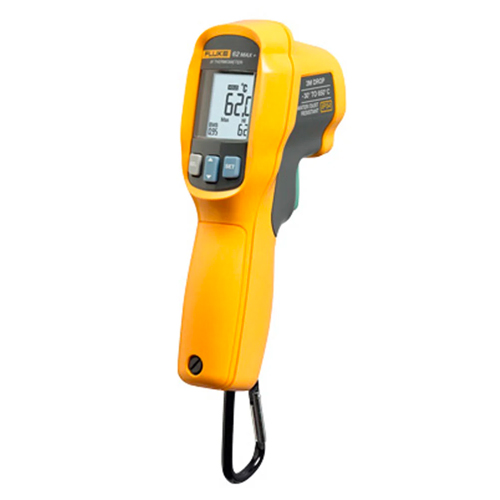

Fluke 62 MAX+ Handheld Infrared Laser Thermometer

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE 62

MFR Part # FLUKE 62

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 62 MAX+ Infrared Laser Thermometer delivers the features and accuracy needed for non-contact temperature measurements on a wide range of equipment. Just point, shoot, and read the temperature of transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents. Its small size and versatile features make it extremely easy to use. Plus, it’s rugged enough to take a 3-meter drop.

The accurate infrared technology and dual lasers provide a 12:1 distance to spot ratio, making it easier to accurately measure temperatures in hard to reach areas. With its IP54 rating for dust and water resistance users can rely on the Fluke 62 MAX+ to provide extremely accurate temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites.

Features

High and low alarms for rapid detection of measurements outside the limits
Powered by a single, standard AA battery.
Comes with a three-year warranty -30-
Withstands a 3 m (9.8 ft.) drop
Offers small, lightweight form factor to clip comfortably to your tool belt or belt loop, or easily fit in your tool box
Features a large, backlit display to make data easier to read, even in dark areas
Displays Min/Max/Avg/Dif: the minimum, maximum or average temperature, or the difference between two measurements

Specifications

Weight

: 255 g (8.99 oz)
Dimensions

: 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)
Operating Temperature:

0°C to 50°C (32°F to 122°F)
Storage Temperature:

-20°C to 60°C (-4°F to 140°F), (without battery)
Operating Humidity:

10% to 90% RH non-condensing at 30°C (86°F)
Operating Altitude:

2000 meters above mean sea level
Storage Altitude:

12,000 meters above mean sea level
IP Rating:

IP54 per IEC 60529
Drop Test:

3 meters
Vibration and Shock:

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
Electromagnetic Compliance:

IEC 61326-1: Portable electromagnetic equipment
Safety:

IEC 61010-1: Pollution degree 2 IEC 60825-1: Class 2
Accuracy:

±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0
Response Time (95%):

< 500 ms (95% of reading)
Spectral Response:

8 to 14 microns
Emissivity:

0.10 to 1.00
Optical Resolution:

12:1 (calculated at 90% energy)
Display Resolution:

0.1°C (0.2°F)
Repeatability of Readings:

±0.5% of reading or <±0.5°C (1°F), whichever is greater
Power:

AA battery
Battery Life:

8 hours with laser and backlight on
