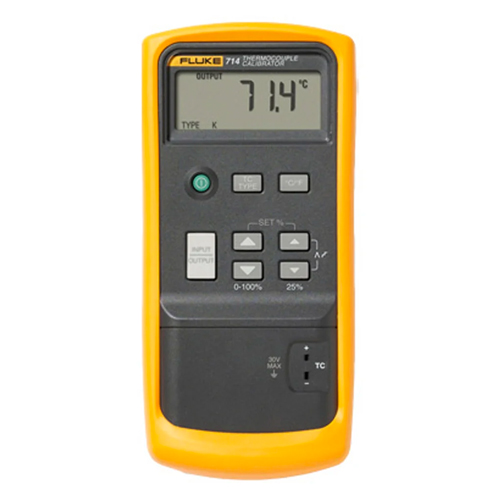

Fluke 714 Thermocouple Calibrator

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE 714

MFR Part # FLUKE-714

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability, and reliability. The calibrator is compact, lightweight, and easy to carry. With a push-button interface (similar to the multifunction Fluke 750 Series documenting process calibrators), the 714 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.

Features

Includes:
Fluke 714 Calibrator, protective yellow holster with test lead storage, instructions sheet (14 languages), single 9V alkaline battery, NIST-traceable calibration report and data
Features:
Measure temperature from TC output
Simulate TC output
Operable with nine types of thermocouples
Calibrate linear TC transmitter with mV source function
Selectable °F or °C
Thermocouple mini-jack termination

Specifications

Weight

: Approx. 330 g (21 oz)
Dimensions

: 187 x 87 x 32 mm (7.93 x 3.86 x 2.06 in)
Operating temperature:

-10°C to 55°C
Storage temperature:

-40°C to 60°C
Humidity (without condensation):

95% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) 35% (50°C to 55°C)
Operating altitude:

3,000 m max
Shock and vibration:

Random, 2 G, 5-500 Hz 1 m drop test
Battery type:

Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Display:

LCD, 5 digit temperature and current simultaneous
Measure / simulate thermocouple:

Range: -200 to 1800°C, depending on type Resolution: 0.1°C Accuracy: 0.3°C + 10 µV
Measure / simulate mV:

Range: -10 to 75 mV Resolution: 0.01 mV Accuracy: 0.025% + 1 count
Safety:

CSA C22.2 No. 1010.1:1992
Warranty:

3 years
