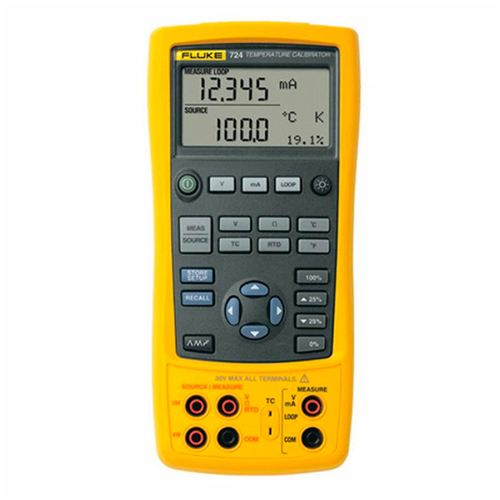

Fluke 724 Temperature Calibrator

Product Description

The Fluke 724 is powerful yet easy-to-use temperature calibrator that sources and measures 10 thermocouple types, and 7 RTD types, plus volts and ohms. It also measures mA while supplying loop power. Users can test and calibrate almost any temperature instrument.

The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The dual-line measure/source display lets users source temperature and view loop current at the same time. And with its simple, no menus controls, users are able to get all testing done faster.

Specifications

• Weight:
  650 g
• Dimensions:
  96 x 200 x 47 mm
• Operating Temperature:
  -10°C to 55°C
• Storage Temperature:
  -20°C to 71°C
• Humidity (Without Condensation):
  90% - 10°C to 30°C 75% - 30°C to 40°C 45% - 40°C to 50°C 35% - 50°C to 55°C
• Measurement Accuracy
  Voltage DC: 30.000 V 0.02% + 2 counts (upper display) 20.000 V 0.02% + 2 counts (lower display) 100.00 mV 0.02% + 2 counts -10.00 mV to 75.00 mV 0.025% + 1 count (via TC connector)
• Current DC:
  24.000 mA 0.02% + 2 counts
• Resistance:
  0.0 to 400.0 Ω – 0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire) 401 to 1500 Ω – 0.5 Ω (4-wire), 1 Ω (2- and 3-wire) 1500 to 3200 Ω – 1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
• Source Accuracy
  Voltage DC: 100.00 mV 0.02% + 2 counts 10.000 V 0.02% + 2 counts -10.00 mV to 75.00 mV 0.025 % + 1 count (via TC connector)
• Resistance:
  15.0 to 400.0 Ω – 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA) 401 to 1500 Ω – 0.5 Ω (excitation current 0.05 to 0.8 mA) 1500 to 3200 – Ω 1 Ω (excitation current 0.05 to 0.4 mA)
• Safety Rating:
  CSA C22.2 No. 1010.1:1992
• EMC:
  EN50082-1:1992 and EN55022:1994 Class B
• Batteries:
  Four AA alkaline batteries
• Battery Life:
  25 hours typical
• Shock and Vibration:
  Random, 2 G, 5-500 Hz
• Warranty:
  Three years

Product Codes

• Mfr Part No
  FLUKE 724

Documentation

• FLUKE 724 Data Sheet
• FLUKE 724 Manual
