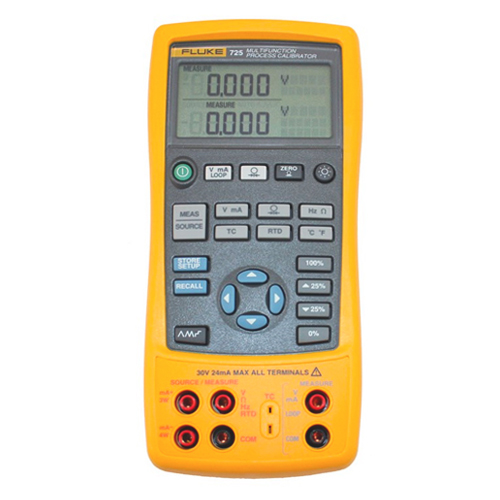

Fluke 725 Multifunction Process Calibrator


FLUKE

Call For Pricing
Available to order
EDMO # FLUKE 725
MFR Part # FLUKE-725
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

With the Fluke 725 Multifunction Process Calibrator, users can easily source and measure almost any process parameter and test almost any process device. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules. The Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy.

Features

  • Includes:
  • One set of AC72 alligator clips, one set of stackable test leads, one set of TL 75 test leads, User manuals, NIST- traceable calibration report and data
  • Features:
  • Powers transmitters during test using loop supply with simultaneous mA measurement
  • Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
  • Provides a backlit display to provide better visibility in poor light
  • Features small, streamlined shape, and rugged, reliable design that stands up to field use
  • Sources mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Supports flow meter testing with frequency and CPM functions
  • Performs fast linearity tests with auto-step and auto-ramp features

Specifications

  • Weight
    : 0.65 kg
  • Dimensions
    : 130 x 236 x 61 mm
  • Batteries
    : 4 AA alkaline batteries
  • Battery replacement:
    Separate battery compartment, accessible without breaking calibration seal
  • Side port connections:
    Pressure module connector, also used for remote real-time programming
  • Operating temperature:
    -10°C to +55°C
  • Storage temperature:
    -20°C to 71°C
  • Operating altitude:
    3000 m
  • Ramp functions
    Source functions: Voltage, current, resistance, frequency, temperature Ramps: Slow ramp, Fast ramp, 25% step-ramp
  • Loop power function
    Voltage: 24 V Accuracy: 10% Maximum current: 22 mA, short circuit protected
  • Step functions
    Source functions: Voltage, current, resistance, frequency, temperature Steps: 25% of range, 100% of range
  • Agency approvals:
    EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992

Related Products

Product Codes

  • Mfr Part No
    FLUKE-725
  • SCHEDULE B CODE
    0000.00.0000
