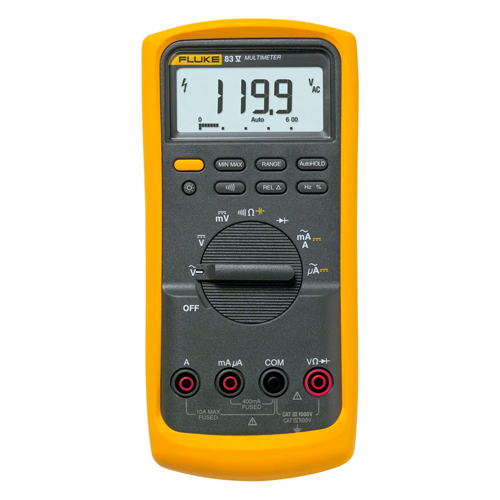

Fluke 83V Average Responding Industrial Multimeter

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE 83-5

MFR Part # FLUKE 83-5

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 83V Industrial Multimeter is trusted from the control room to the plant floor. With its accuracy and troubleshooting capabilities, the Fluke 83V Industrial Multimeter works in loud, high energy, and high altitude locations. The Fluke 83V delivers the accuracy and advanced troubleshooting capabilities users need.

Features

Includes:
TL75 Test Leads, AC175 Alligator Clips, Holster, 9V Battery (Installed)
Features:
Large digital display with bright, two-level backlight makes the 83V significantly easier to read than older models
6000 counts, 3-3/4 digits
Measure up to 1000 V AC and DC
Measure up to 10 A, 20 A for up to 30 seconds
Frequency to 200 kHz and % duty cycle
Resistance, continuity and diode test
10,000 µF capacitance range for components and motor caps
Min/Max-Average recording with Min/Max Alert to capture variations automatically
Relative mode to remove test lead interference from low ohms measurements
Auto and manual ranging for maximum flexibility
Touch Hold to capture stable readings avoiding noisy signals
Large display digits and two-level bright white backlight for increased visibility
Analog bar graph for fast changing or unstable signals
Input Alert provides audible warning against wrong use of input jacks
Improved selectable sleep mode for long battery life
Access door for fast battery changes without breaking the calibration seal
""Classic"" design with new removable holster with built in test lead and probe storage
Lifetime warranty

Also Purchased

Specifications

Weight:

355 g
Dimensions:

201 x 98 x 52 mm (with holster)
Battery life:

Alkaline~400 hours typical, without backlight
Shock:

1 Meter drop per IEC 61010–1:2001
Vibration:

Per MIL–PRF–28800 for a Class 2 instrument
Operating temperature:

–20°C to +55°C
Storage temperature:

–40°C to +60°C
Humidity (without condensation):

0% – 90% (0°C – 35°C) 0% – 70% (35°C – 55°C)
Operating altitude:

2000 m
Voltage:

DC Max: 1000V AC Max: 1000V
Current:

DC Max amps: 10 A (20 A for 30 seconds maximum) AC Max amps: 10 A (20 A for 30 seconds maximum)
Resistance:

Maximum resistance: 50 MΩ Accuracy: ±(0.4% + 1) Maximum resolution: 0.1 Ω
Capacitance:

Maximum capacitance: 9,999 µF Accuracy: ±(1% + 2) Maximum resolution: 0.01 nF
Frequency:

Maximum frequency: 200 kHz Accuracy: ±(0.005% + 1) Maximum resolution: 0.01 Hz
Duty cycle:

Maximum duty cycle: 99.9% Accuracy: ±(0.2% per khz + 0.1%) Maximum resolution: 0.1%
Conductance:

Maximum conductance: 60.00 nS Accuracy: ±(1.0% + 10) Maximum resolution: 0.01 nS
Diode:

Range: 3 V Resolution: 1 mV Accuracy: ±(2% + 1)
Overvoltage category:

EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals:

CSA, TÜV
Warranty

: Lifetime
