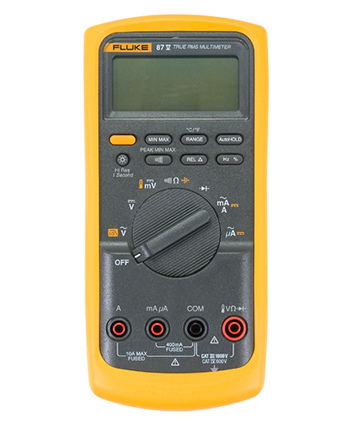

Fluke 87V True-RMS Industrial Multimeter

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE 87-5

MFR Part # FLUKE 87V

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 87V True-RMS Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations.

On top of that, this industrial multimeter effectively performs in loud, high energy, and high altitude locations. Features a low pass filter which supports precise frequency measurements on VFDs and acquires intermittents as quickly as 250 µS.

Use this multimeter to measure AC currents up to 10 A directly. Also, features a built-in thermometer that enables you to take temperature readings without having to carry a separate instrument and more. Plus, comes with a bright, two-level backlit display which allows you to see the results better in dim light.

Features

Supports accurate measurements on VFDs using a low-pass filter
Captures intermittents as fast as 250 µS with Peak Capture
Blocks high-frequency, high-energy noise generated by large drive systems with specially designed shielding
Removable holster with built in test lead and probe storage for convenience
Offers relative mode to remove test lead interference from low ohms measurements
All the inputs in the 87V are updated to the third edition of the EN 61010-1 to 1000 V CAT III and 600 V CAT IV
Designed to withstand spikes of more than 8000 V
Audible Input Alert warning against wrong use of input jacks
Comes with a lifetime warranty
Easy access door for fast battery changes without breaking the calibration seal
6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution

Specifications

Weight:

355 g
Dimensions:

201 x 98 x 52 mm
Battery Life:

Alkaline ~400 hours typical, without backlight
Shock:

1 Meter drop per IEC 61010–1:2001
Vibration:

Per MIL–PRF–28800 for a Class 2 instrument
Operating temperature:

–20 °C to + 55 °C
Storage temperature:

–40 °C to + 60 °C
Humidity (without condensation):

0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)
Operating Altitude:

2000 m
Overvoltage category:

EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals:

CE, CSA, RCM
