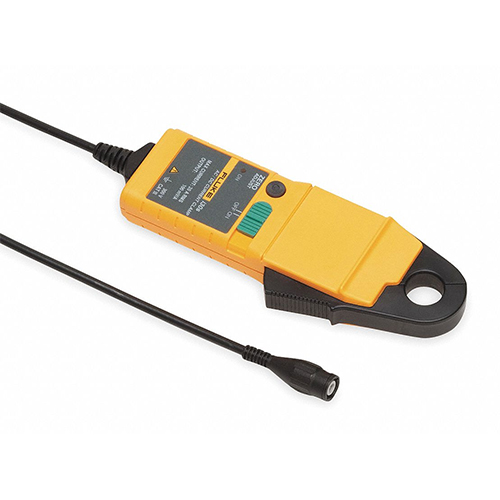

Fluke i30s | AC/DC Current Clamp

Product Description

The i30s current clamp is based on Hall effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.

Specifications

• Weight:
  0.55 lb
• Dimensions:
  7.2 x 2.8 x 1 in.
• Specified current range:
  30 mA to 30 A DC, 30 mA to 20 A AC rms
• Usable current range:
  5 mA to 30 A DC, 30 mA to 20 A AC rms
• Crest factor:
  1.4
• Output sensitivity:
  100 mV/A
• Accuracy (at +25 °C):
  ± 1 % of reading ± 2 mA
• Resolution:
  ± 1 mA
• Load impedance:
  > 100 kW
• Conductor position sensitivity:
  ± 1 % relative to centre reading
• Frequency range:
  DC to 100 kHz (- 0.5 dB)
• Phase shift below 1 kHz:
  < 2 degrees
• Temperature coefficient:
  ± 0.01 % of reading/°C
• Power supply:
  9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
• Working voltage:
  300 V ac rms or dc

Product Codes

• Mfr Part No
  I30S
