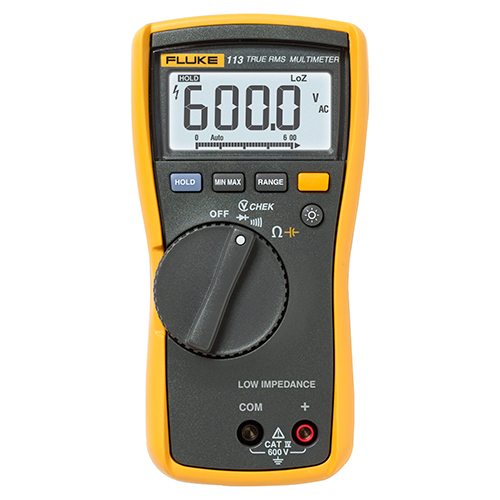

Fluke 113 Digital Multimeter

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE-113

MFR Part # FLUKE 113

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 113 Digital Multimeter gives users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple-to-use and has the features needed to repair most electrical problems. The Fluke 113 can perform diode tests, and also provides both auto and manual ranging capabilities.

Using the Fluke VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity. LoZ low impedance measurements also block ghost voltages induced by nearby conductors.

Features

Includes:
Fluke TL75 test leads
Holster
Users manual
9 V battery (installed)
Features:
VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity*
True RMS for accurate AC measurements on non-linear loads
A large backlit display allows for easy visibility in low-lit areas
Record signal fluctuations using the Min/Max function
Diode test for testing general-purpose germanium, silicon, and power diodes
Integral holster with probe holders for easy storage
Auto and Manual ranging for added user functionality

Specifications

Weight:

13.0 oz (404 g)
Dimensions:

167.1 x 85.1 x 46.0 mm (6.58 x 3.35 x 1.81 in)
Maximum voltage:

600 V (between any terminal and earth ground)
Display:

3 3/4-digits, 6000 counts, updates 4/sec
Operating temperature:

-10°C to 50°C (14°F to 122°F)
Storage temperature:

-40°C to 60°C (-22°F to 140°F)
Temperature coefficient:

0.1 x (specified accuracy) / °C ( 28°C)
Operating altitude:

2,000 m
Storage altitude:

10,000 m
Relative humidity:

95% to 30°C 75% to 40°C 45% to 50°C
Battery type:

9 Volt Alkaline, IEC 6F22
Battery life:

300 hours typical, without backlight
Safety:

IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
EMI regulations:

Complies with FCC Part 15, Class B
VCHEK:

Range: 6.000 V / 60.00 V / 600.0 V Resolution: 0.001 V / 0.01 V/ 0.1 V Accuracy: DC, 45 to 500 Hz: 2.0% + 3 / 500 Hz to 1 kHz: 4.0% + 3
Diode test:

Range: 2.000 V Resolution: 0.001 V Accuracy: 2.0% + 3
Continuity

: Accuracy: Beeper on 250 Ω detects opens or shorts of 500 μs or longer
Ohms

: Range: 600.0 Ω / 6.000 kΩ / 60.00 kΩ Resolution: 0.1 Ω / 0.001 kΩ / 0.01 kΩ Accuracy: 0.9% + 2 / 0.9% + 1 / 0.9% + 1
Capacitance

: Range: 1000 nF / 10.00 μF / 100.0 μF / 9999 μF Resolution: 1 nF / 0.01 μF / 0.1 μF / 1 μF Accuracy: 1.9% + 2 / 100 μF - 1000 μF: 1.9% + 2 / 1000 μF: 5% + 20
