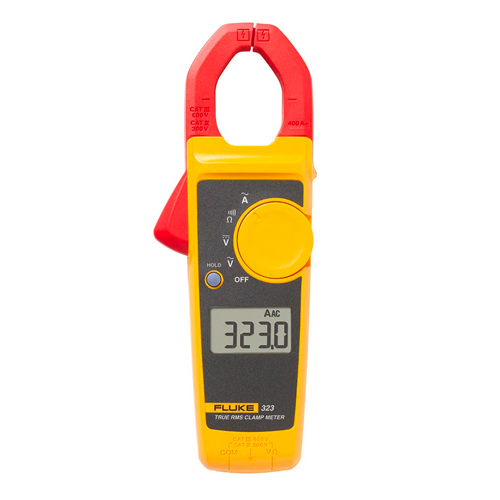

Fluke 323 True RMS Clamp Meter

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE-323

MFR Part # FLUKE-323

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes True RMS measurements, optimized ergonomics, and large display for efficient troubleshooting. It's designed to perform in the toughest environments and provide noise-free, reliable results.

Use it to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts. Its slim, compact size and rugged design make it well suited for measuring current up to 400 A in tight cable compartments.

Features

Includes:
Test leads
Soft case
User's manual
Features:
Slim, ergonomic design for measuring in tight cable compartments
Presents measurements on a large, easy-to-read display
Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
Measures AC current to 400 A
Measures AC voltage and DC voltage to 600 V
Provides True RMS AC voltage and current for accurate measurements on non-linear signals
Measures resistance to 4 kΩ with continuity detection
Hold function captures a reading on the display
Features a CAT III 600 V, CAT IV 300 V safety rating

Specifications

Weight

: 265 g
Dimensions

: 207 x 75 x 34 mm
Max Wire Diameter:

30 mm (600 MCM)
AC Current:

Range: 400.0 A Accuracy: 2% ± 5 digits (45 Hz to 65 Hz) / 2.5% ± 5 digits (65 Hz to 400 Hz)
AC Voltage:

Range: 600.0 V Accuracy: 1.5% ± 5 digits
DC Voltage:

Range: 600.0 V Accuracy: 1.0% ± 5 digits
Resistance:

Range: 400.0 Ω/ 4000 Ω Accuracy: 1.0% ± 5 digits
Continuity:

≤ 70 Ω
Category Rating:

CAT III 600 V CAT IV 300 V
Warranty:

Two-year
