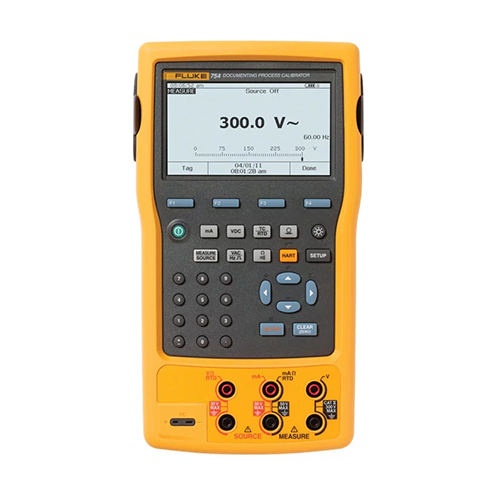

Fluke 754 Documenting Process Calibrator with HART®

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE-754

MFR Part # FLUKE-754 CAL

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 754 Documenting Process Calibrator is a powerful multifunction documenting calibrator that can download procedures, lists, and instructions created with the software and also upload data for printing, achieving, and analysis. The 754 sources, simulates, and measures pressure, temperature, and electrical signals with one rugged, hand-held device. When documenting, the Fluke 754 automates calibrations processors while capturing data. This helps meet the rigorous standards such as ISO 9000, FDA, EPA, OSHA regulations. The improved graphical screen, long-life Li-Ion battery, USB port improves users’ workflows and aids in faster and smarter workflows. When using Fluke’s DPCTrack2 Calibration Management software allows users to create seamless and paperless calibration.

Features

Includes:
BC7240 battery charger
Li-on BP7240 battery pack
DPCTrack 2™ Sample Software
Instruction manual
NIST-traceable calibration report and data
Three sets of TP220 test probes with three sets of ""extended tooth"" alligator clips
Two sets AC280 hook clips
C799 Soft Field Case
USB communication cable, Fluke 754HHC HART communications cable
Features:
Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms
Measures/sources pressure using any of 29 Fluke 700Pxx Pressure Modules
Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
Holds up to a full week of downloaded procedures and calibration results
Autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay
Provides easy-to-use multi-lingual interface
Bright white dual display for reading both sourced and measured parameters simultaneously
Includes rechargeable Li-Ion battery for 10 hour uninterrupted use
Comes with three-year warranty and DPC/Track Sample software
Compatibility with many asset management software packages

Specifications

Weight:

1.2 kg (2.7 lb)
Dimensions:

5.4 x 9.6 x 2.5 in (136 x 245 x 63 mm)
Battery:

Li-ion 7.2V, 4400 mAh, 30 Wh
Battery life:

8 hr (typical)
Side port connections:

Pressure module connector USB Connector to interface to your PC Digital instrument (HART) connector Connection for optional battery charger/eliminator
Data storage capacity:

1 week of calibration procedures results
Operating temperature:

-10°C to 50°C
Storage temperature:

-20°C to 60°C
Dust/water resistance:

Meets IP52, IEC 529
Operating altitude:

3000 m above mean sea level (9842 ft)
