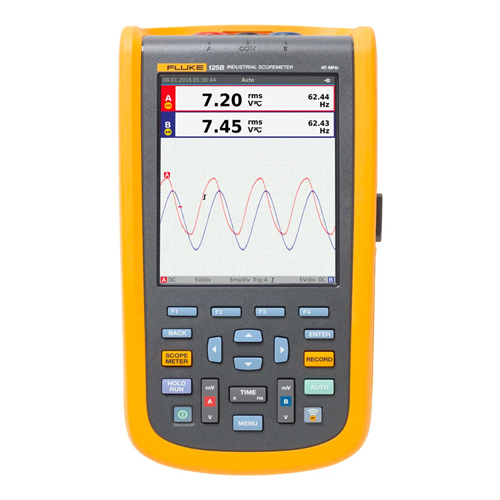

Fluke 125B Industrial ScopeMeter® Handheld Oscilloscope | 40 MHz, FlukeView™ Software

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE125BS

MFR Part # FLUKE-125B/NA/S

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 125B Industrial ScopeMeter features innovative functions that help technicians troubleshoot faster and obtain the answers they need to keep their systems going. This handheld oscilloscope features a 40 MHz bandwidth and also allows users to automatically view related numerical measurements due to its Fluke IntellaSet™ technology. Additionally, it comes with Recorder Event Detect capabilities (which capture intermittent events and logs them for simple viewing and analysis), a current clamp, and the FlukeView™ software.

Features

Includes:
Oscilloscope
2 x Shielded Test Leads with Ground Leads
Test Lead
Hook Clips
Banana to BNC Adapter
Voltage Probe
AC Current Clamp
WiFi USB Adapter
Magnetic Hanger
Screen Protector
Carrying Case
Li-Ion Battery Pack
Charger/Power Adapter
FlukeView™ Software for Windows
Features:
Dual-input digital oscilloscope and multimeter
40 MHz oscilloscope bandwidth
Two 5000-count True RMS digital multimeters
Connect-and-View™ trigger simplicity for hands-off operation
IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
Shielded test leads for oscilloscope, resistance and continuity measurements
Resistance, continuity, diode and capacitance meter measurements
Power measurements (W, VA, VAR, PF, DPF, Hz)
Voltage, current and power harmonics
Check Industrial networks with BusHealth physical layer tests against defined reference levels
Save or recall data and instrument setups
Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures
External optically isolated USB interface to transfer, archive and analyze scope or meter data
Optional WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app
Rugged design to withstand 3g Vibration, 30g shock, and rated IP51 according to EN/IEC60529
Highest safety rating in the industry: safety rated for CAT IV 600 V

Specifications

Weight

: 3.2 lbs (1.4 kg) including battery pack
Dimensions

: 10.2 x 5.2 x 2.15 in (259 x 132 x 55 mm)
Environmental:

MIL-PRF-28800F, Class 2
Temperature:

Battery operation: 32 to 104°F (0 to 40°C) Power adapter operation: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C)
Humidity (Operating):

32 to 50°F (0 to 10°C): noncondensing 50 to 86°F (10 to 30°C): 95% 86 to 104°F (30 to 40°C): 75% 104 to 122°F (40 to 50°C): 45%
Altitude:

Operating at 10,000' (3 km): CAT III 600 V Operating at 6600' (2 km): CAT IV 600 V Storage: 40,000' (12 km)
Safety:

General: IEC 61010-1: Pollution Degree 2 Measurement: IEC 61010-2-033: CAT IV 600 V/CAT III 750 V
External Power:

Via Power Adapter BC430
Input Voltage:

10 to 21 V DC
Power Consumption:

5 W typical
Input Connector:

5 mm jack
Internal Power:

Via battery pack BP290
Battery Power:

Rechargeable Li-Ion 10.8 V
Waveform Display:

Vertical: 10 div of 40 pixels Horizontal: 12 div of 40 pixels
Display:

Type: 5.7"" color active matrix TFT Resolution: 640 x 480
Bandwidth

: 40 MHz
Software:

FlukeView™ Software for Windows®
