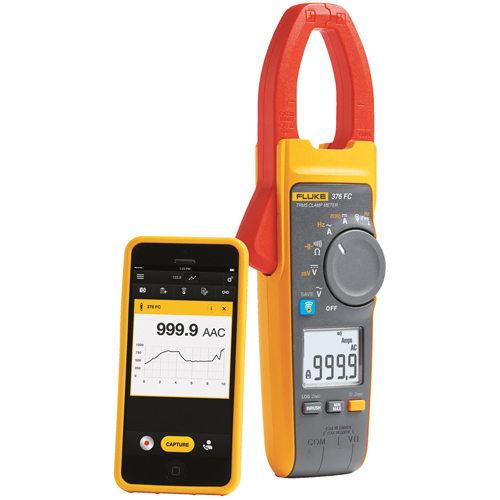

Fluke 376 FC True-RMS AC/DC Clamp Meter with iFlex

TRUE RMS AC/DC CLAMP METER with iFLEX/CAT IV 600 V, CAT III 1000 V, min-max-average recording, inrush measurement technology, backlit display, three year warranty, includes soft carrying case.

FLUKE

Call For Pricing

Available to order

EDMO # FLUKE376FC

MFR Part # FLUKE-376-FC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke 376 FC is a True-RMS AC/DC clamp meter with an iFlex flexible current probe. This True-RMS multimeter logs measurements to pinpoint intermittent faults, wirelessly transmits measurements via the Fluke Connect app, creates and sends reports from the field, and takes measurements from safe distances using Bluetooth connectivity to Apple and Android devices.

Features

Includes:
Fluke 376 FC True-RMS Clamp Meter with iFlex
18-inch iFlex® Flexible Current Probe
TPAK magnetic hanging strap
TL75 Test Leads
Two AA batteries (Installed)
Soft carrying case
Coated instruction card
Safety information sheet
Features:
Connects to a smartphone with the Fluke Connect App
Measurements can be read at a safe distance using a smartphone
Records measurements to a smartphone and to the cloud
Captures intermittent faults while performing other tasks
Create and share reports from the field via email, or converse in real-time with ShareLive video calls
iFlex flexible current probe expands the measurement range to 2,500A AC and provides access to included large conductors in tight spaces
Includes TPAK magnetic hanging strap
Integrated VFD low-pass filter for accurate motor drive measurements
Proprietary inrush measurement technology filters out noise and captures motor starting current exactly as the circuit protection sees it
CAT IV 600 V, CAT III 1,000 V safety rating

Specifications

Weight:

395 g
Dimensions:

249 x 85 x 45 mm
Jaw Opening:

34 mm
Flexible Current Probe Diameter:

7.5 mm
Flexible Current Probe Cable Length:

1.8 m (head to electronics connector)
Maximum Voltage:

1000 V (between any terminal and earth ground)
Batteries:

2 AA, NEDA 15A, IEC LR6
Operating Temperature:

-10 °C to +50 °C
Storage Temperature:

-40 °C to +60 °C
Operating Humidity Non-Condensing (< 10°C):

≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C)
Operating Altitude:

2000 m
Storage Altitude:

12,000 m
IP Rating:

IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID:

T68-FBLE IC:6627A-FBLE
Resistance:

Range: 60 kΩ Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ) Accuracy: 1% ±5 digits
Capacitance:

Range: 1000 μF Resolution: 0.1 μF (≤ 100 μF), 1 μ F (≤ 1000 μF) Accuracy: 1% ±4 digits
Frequency Via Flexible Current Probe

Range: 5.0 Hz to 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger level: 5 Hz to 20 Hz, ≥25 A, 20 Hz to 100 Hz, ≥20 A, 100 Hz to 500 Hz, ≥25 A
Frequency Via Jaw

Range: 5.0 Hz to 500.0 Hz Resolution: 0.1 Hz Accuracy: 0.5% ±5 digits Trigger level: 5 Hz to 10 Hz, ≥10 A, 10 Hz to 100 Hz, ≥5 A, 100 Hz to 500 Hz, ≥10 A
DC Current

Range: 999.9 A Resolution: 0.1 A Accuracy: 2% ±5 digits
DC Voltage

Range: 1000 V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Accuracy: 1% ±5 digits
AC Voltage

Range: 1000 V Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V) Accuracy: 1.5% ±5 digits (20 Hz to 500 Hz)
AC Current Via Jaw

Range: 999.9 A Resolution: 0.1 A Accuracy: 2% ±5 digits (10 Hz to 100 Hz), 2.5% ±5 digits (100-500 Hz) Crest Factor (50 Hz/60 Hz): 3 @ 500 A, 2.5 @ 600 A, Add 2% for C.F. >2
AC Current Via Flexible Current Probe

Range: 2500 A Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A) Accuracy: 3% ±5 digits (5 – 500 Hz) Crest Factor (50/60Hz): 3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, Add 2% for C.F. > 2
