G125 GO/NO-GO Gage | GO 0.0390, NO-GO 0.0440

Product Description

Daniels Manufacturing Corporation's crimp tools require consistent verification to ensure the precise quality of terminations is maintained. DMC designed easy-to-use Go/No-Go gages to verify tolerances and ensure our extensive line of qualified crimp tools are in specification. Gages can be designed in round, flat, stepped, or specialty configurations based on application and are compatible with indent or form crimp tools.

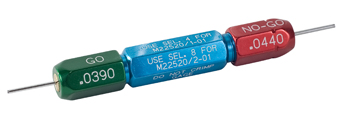

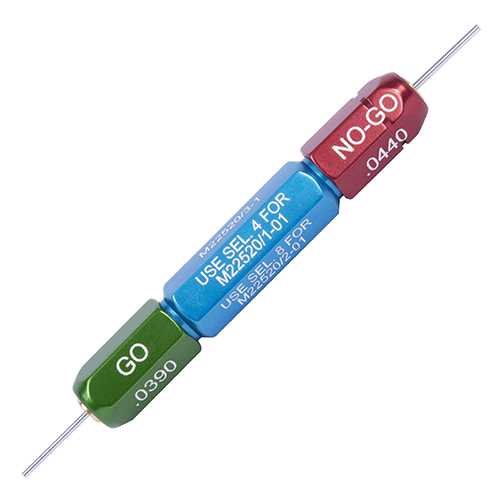

This go/no-go gauge (EDMO# G125) is used with the AF8 & AFM8 Hand Crimp Tool and has a gage range of 0.0390 (GO) to 0.0440 (NO-GO).

Specifications

• Weight:
  0.131 lb
• Length:
  2.5 in, approx. (handle)
• Tolerance:
  GO: 0.0390 ±0.0001 NO-GO: 0.0440 ±0.0001

Product Codes

• Mfr Part No
  G125
• ECCN
  EAR99
• MIL SPEC
  M22520/3-1
• NSN
  5220-00-165-7604
• SCHEDULE B CODE
  8203.20.6060

Documentation

• G125 GO/NO-GO gage envelop drawing
