HONDA-945 Air Data Accessories Kit | HondaJet

HONDA-945 Air Data Accessories Kit | HondaJet

NAV-AIDS LTD

Call For Pricing

Available to order

EDMO # HONDA-945

MFR Part # HONDA-945

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

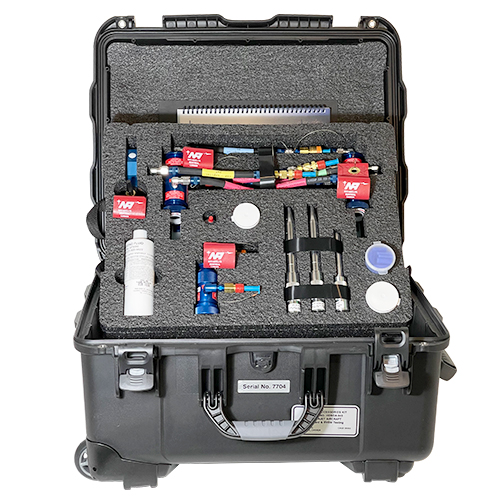

This air data accessories kit contains all the equipment required to test from source the complete pitot and static air data system on the HondaJet aircraft, as well as the means of pre-testing all adapters and hoses prior to being fitted to the aircraft. Each adapter includes a "remove before flight" tag for safety and uses AN fittings for reliability. This air data accessories kit is compatible with any air data test set.

Features

Compatible with any air data test set
Includes "Remove Before Flight" tag for safety
Uses AN fittings for added reliability
Includes:
Right Hand Alpha Probe Adapter: APA97632M1RH-4-4-4 (1 required)
Left Hand Alpha Probe Adapter: APA97632M1LH-4-4-4 (1 required)
Pre-Test Probe: PT421-632 (2 required)
Standby Pitot-Static Test Adapter: PS57432-4C-K2 (1 required)
Pre-Test Probe: PT421-7432 (1 required)
Pitot Test Hose Assembly: HONDA-7270RVSM (1 required)
Static-Alpha Test Hose Assembly: HONDA-5160RVSM (1 required)
Pilot Alpha Test Hose Assembly: HONDA-8381 (1 required)
Co-pilot Alpha Test Hose Assembly: HONDA-6271 (1 required)
Hose Suspension Assembly: 532-8971DB-2 (1 required)
Seal Kit: SK7632 (2 required)
Seal Kit: SK7432 (1 required)
Lubricating Fluid: LF5050 (1 required)
Seal Exchange Tool Kit: 421-ASTK (1 required)
Test Hose Strap Kit: THSK-001 (1 required)
Manual: 444-HONDA-9
Compatible aircraft:
HondaJet

Product Codes

Mfr Part No

HONDA-945
ECCN

EAR99
SCHEDULE B CODE

9031.90.0000
