HTAT Dual-Walled Heat Shrink | 4:1, Black, 4' Stick

                                         data-sf-ec-immutable=

EDMO

EDMO#: HTAT4813-0

MFR#: HTAT-48/13-0-STK

Description

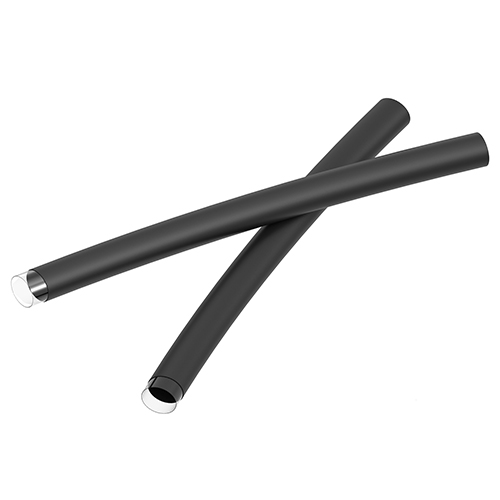

HTAT is a dual-walled, heat shrinkable polyolefin with an adhesive coating at the interior that adheres to a wide variety of plastic, rubber, and metal surfaces. Once cooled, it returns to its original state and forms a moisture-resistant bond between the tubing and substrate.

This HTAT heat shrink tubing (EDMO# HTAT4813-0) has expanded inside diameter 1.89 in and a recovered inside diameter of 0.512 in.

Features

  • Operating temperature range: -55°C to 125°C
  • Shrink ratio: 4:1
  • Minimum shrink temperature: 80°C
  • Standard colors: black

Specifications

Wall Type:
Dual Wall

Operating Voltage (Max):
0.6 kV

Fluid Type:
Diesel Fuel, Hydraulic Fluid, Lubricating Oil, Motor Oil, Water

Primary Product Color:
Black

Shrink Ratio:
4:1

Primary Product Material:
Irradiated Modified Polyolefin

Flexibility:
Semi-Flexible

Recovered Wall Thickness (Tolerance):
0.55 mm (0.022 in)

Product Codes

Mfr Part No :

HTAT-48/13-0-STK

ECCN :

EAR99

SCHEDULE B CODE :

8203.20.6060
