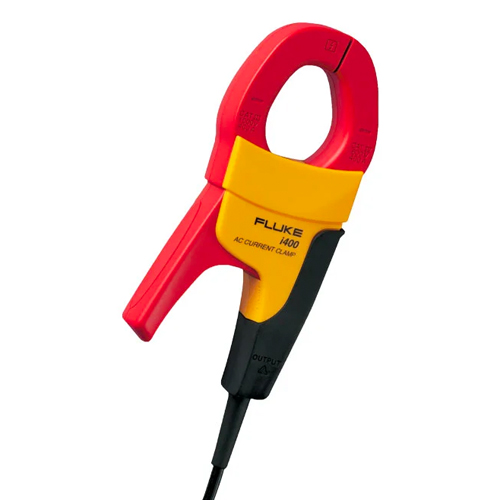

Fluke i400 AC Current Clamp

Product Description

The Fluke i400 AC Current Clamp is a single range 400 A ac current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device, and provides accurate current measurements without breaking electric circuits, helping users take measurements safely with industry standard safety ratings.

Specifications

• Maximum conductor diameter:
  32 mm (1.25 in)
• Maximum conductor size (busbar):
  750 MCM
• Output cable length:
  1.5 m (59 in)
• Shrouded banana plugs:
  Yes
• Nominal current range:
  400 A
• Continuous current range:
  1 A - 400 A
• Maximum non-destructive current:
  1000 A
• Lowest measurable current:
  1 A
• Basic accuracy:
  2% + 0.06 A (45-400 Hz) (% reading + floorspec)
• Useable frequency:
  5 Hz - 20 kHz
• Output level(s):
  1 mA/A
• Safety:
  CAT IV 600 V, CAT III, 1000 V
• Maximum voltage:
  1000 V AC rms from earth to ground, in compliance with EN61010
• Warranty:
  1 year

Product Codes

• Mfr Part No
  I400
• SCHEDULE B CODE
  9025.19.8080

Documentation

• FLUKE i400 Instruction Sheet
