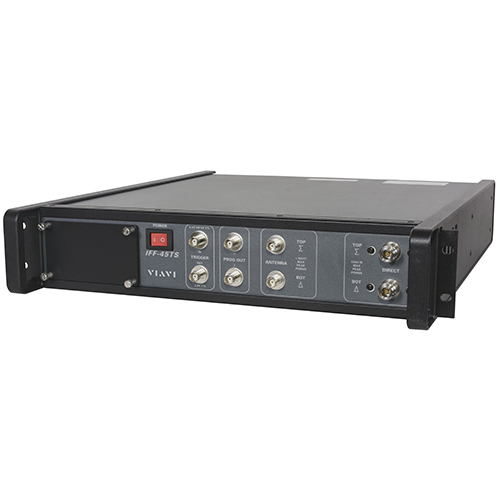

IFF-45TS Bench Test Set | XPNDR MODES: 1,2,3/A,C,4 & S Mode 5 Capable, 110V/ITAR

VIAVI

Call For Pricing

Available to order

EDMO # IFF45TS110

MFR Part # 72438

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IFF-45TS MK XIIA/TACAN Bench Test Set is an RF signal simulator that provides support for AIMS Mark XIIA transponders and interrogators. It operates under remote control from a computer or ATE system and provides versatile signal generation and measurement capability of Mark XIIA system signals in bench and over-the-air applications.

Features

MK XIIA AIMS certified for Level 1 and Level 2
Supports DOD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77)
Dual I/O for diversity testing of transponders or SUM/DIFFERENCE on interrogators

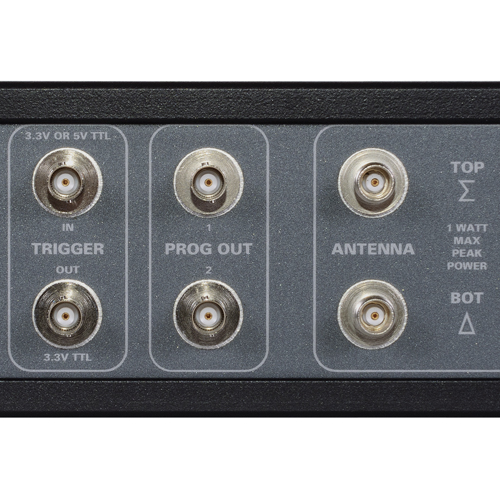

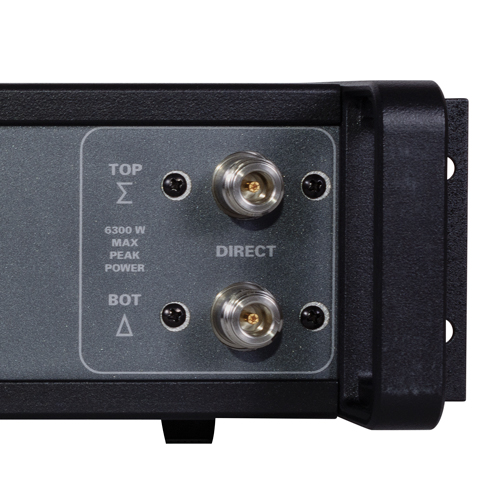

Separate connections for direct or over-the-air testing
Software defined radio design allows waveform flexibility and future growth potential
Dual signal generator design allows coordinated signal production for interference and echo testing
Remote interfaces consist of RS-232, Ethernet and GPIB
Aeroflex GUI allows easy access to test features
Industry wide use in development and end item testing of transponders and interrogatorsADS-B Out (DO-260B) test capability

Specifications

Weight:

24 lb (10 kg)
Dimensions:

17.75 x 4 x 21 in (45 x 10 x 53 cm)
User Interface:

IEEE-488, RS232, and Ethernet (VXI-11) / PC Windows based GUI provided
Modes of Operation:

Transponder Testing: 1, 2, 3/A, C, S, 4, 5 Interrogator Testing: 1, 2, 3/A, C, S, 4, 5 DME/TACAN Testing: G/A, INV G/A, BG/A, BA/A, A/A, INV A/A ADS-B Transponder Out GCIB Decode
Signal Generator:

955 MHz to 1,223 MHz, 10 kHz resolution
Temperature:

-10°C to 55°C (14°F to 131°F)
Warm-up

: 45 min.
Input Power:

100 VAC – 240 VAC, 50 Hz – 60 Hz, 3 amp fuse
Test Set Certifications:

UL, CE, DoD AIMA MK Level I and Level 2
