Fusion JMEP | JMEP10, LR 10 km Smart SFP, 1310 nm

VIAVI

Call For Pricing

Available to order

EDMO # JMEP10LR10

MFR Part # JMEP-10LR10A00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The VIAVI JMEP smart SFPs are gigabit Ethernet smart SFP transceivers that add remote network test, diagnostic and performance management capability to existing network infrastructure. There are two transceiver varieties, a 1 Gbps JMEP3, and a 10 Gbps JMEP10, both of which can seamlessly deploy inline or out-of-line, in existing network devices. They provide network operators and service providers with remote test points that enable performance-assured service delivery and increase the value of existing network infrastructure.

Both JMEP devices provide additional test and monitoring features at the remote end. They simulate multiple simultaneous loads on the network via Y.1564 traffic generation as well as micro-burst monitoring for throughput as a function of time-of-day with resolution to 1 msec.

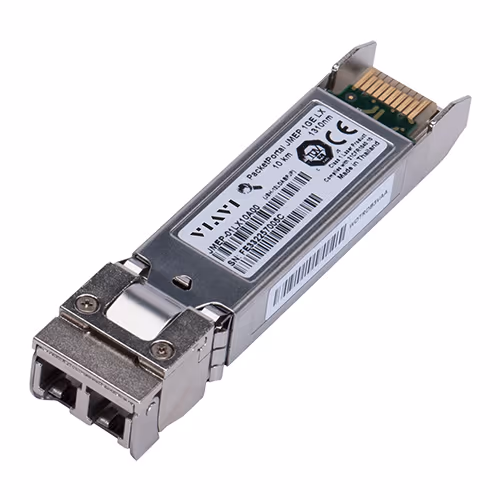

This Fusion JMEP (EDMO# JMEP10LR10) is a 10 Gbps long reach JMEP10 with a 10 km maximum transmission distance, Smart SFP, and a 1310 nm wavelength.

Features

Simple to use, easy to deploy in existing network SFP ports
Turns network ports into service-assurance tools, enabling Ethernet operation, administration, and maintenance (OAM) for any 1 Gigabit Ethernet network
Simplifies test and troubleshooting procedures to reduce equipment upgrades, truck rolls, and mean time to repair (MTTR)
Compatible with a host of VIAVI portable test instruments including OneAdvisor 800 and 1000, NSC 100, and the whole T-BERD/MTS product line which includes the rack-mounted MAP-2100
Monitors across mobile-backhaul networks without additional instrumentation
Fully compatible with RFC 2544 and Y.1564 (L2/L3) test methodologies
RFC 6349 TrueSpeed, standards-based L4-TCP throughput test
Activates test loopbacks (L2/L3)
Monitors inline performance using Y.1731/ TWAMP-Light (RFC 5357)
Measures throughput, availability, frame loss, frame delay, and frame delay variation
Enables OAM 802.1ag for fault isolation
Optical variants covering 1G and 10G line rates
