Big Down Converter | Step Down, 24 to 13.8 VDC

Product Description

The BIG Down converter is a FAA TSO approved DC-DC down converter that has a reputation as a highly reliable power supply. This converter is designed to operate as a step-up or a step-down power converter. The main converter provides 28 VDC to 13.8 VDC up to a maximum of 10/12P amps which can operate 13.8 VDC equipment in a 28 volt aircraft. Additional outputs provide the step-down converter 5, 7.5, 9, 13.8, 16, 19, 24, 28 VDCs. The step-up option is available for special order which provides 14 volts to 5, 7.5, 9, 13.8, 16, 19, 24, 28 VDC. Designed with a 96% efficient DC power module, the multiple output voltages offer OV, OC, OT, SC, RP protections.

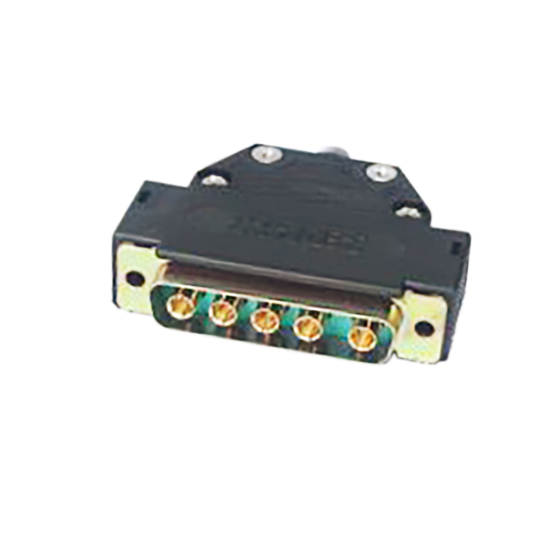

The LS03-05026-1 connector kit is required and sold separately.

Specifications

• Weight:
  16 oz
• Dimensions:
  8 x 6 x 4 in
• Input Frequency:
  DC
• Input Voltage:
  10 - 40V DC
• Input Current:
  2-15 Amps
• Output Current:
  4A/5A Peak, 7A/8A Peak, or 10A/12A Peak
• Output Voltage:
  5, 7.5, 9, 13.8, 16, 19, 24, 28 vdc
• Protections:
  OC, OV, OT, SC and RP
• Connector:
  5 Pin D-sub, 10/20 A
• Terminal Pin Assignment ( Read terminal right to left) :
  Pin A1 = Vin+ Pin A2 = Vin- Pin A3 = Vout+ Pin A4 = Remote on/off
• Operating Temp:
  -55C to +70C
• Storage Temp:
  -55C to +80C
• Operating Humidity:
  5% to 90% RH
• Storage Humidity:
  5% to 95% RH
• Vibration Frequency:
  5 to 50 hz
• Label:
  Top Face

Product Codes

• Mfr Part No
  LS03-05001-B
• SCHEDULE B CODE
  8504.40.9580
