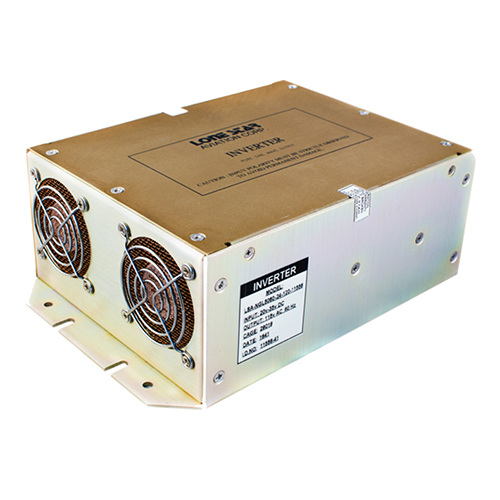

DC to AC Inverter | 28VDC to 115VAC, 60Hz 500 watt, FAA TSO

Product Description

This DC to AC power inverter provides a 500 watt, 115 VAC pure sine wave output from a 28 volt input. This FAA TSO approved power supply can boast of military quality circuity that features 2% total harmonic distortion, 100,000 hour operational life, and frequency stability up to maximum load. The form, fit, and function design of this unit ensures installation compatibility with other inverters made over the last 20 years. This 500 watt power inverter provides enough power to operate devices such as EFBs, tablets, laptops, charging stations, cellphones, aviation radios, air-ambulance medical equipment, scientific instruments, and kitchen appliances.

Specifications

• Weight:
  4.3 lb Input Voltage: 28 VDC (nominal), 20 VDC to 37.5 VDC input range Output Voltage: pure sine wave: single phase, 115 VAC Power Output: 500 Watt: 110% of rated power for 2 hours 90% of rated load for 5 min. at 20 VDC input Harmonic Distortion: 0.5% (nominal) THD PCB Components: 50 VDC working voltage, high temp 125°C Power Factor: +0.8 to -0.8 Response Time: 300 µs (no load to full load) Efficiency: 89% — 90% PO/PC Regulation: 1% line, 1% load, 2.5% temperature Overload Capacity: 110% of rated power for 2 hr 150% of rated power for 5 min. Temperature: -65°F to 160°F (-55°C to 71°C) Humidity: 95% Remote on/off: pin E to ground for remote on/off Vibration: 10—55 c.p.s. double amplitude or greater Parallel Operation: parallel between (2) or more units to increase output current Altitude: test to 30,000 ft, 24 hr operational, 40,000 ft for 5 min.

Product Codes

• Mfr Part No
  LS03-06000
• SCHEDULE B CODE
  8504.40.9540
