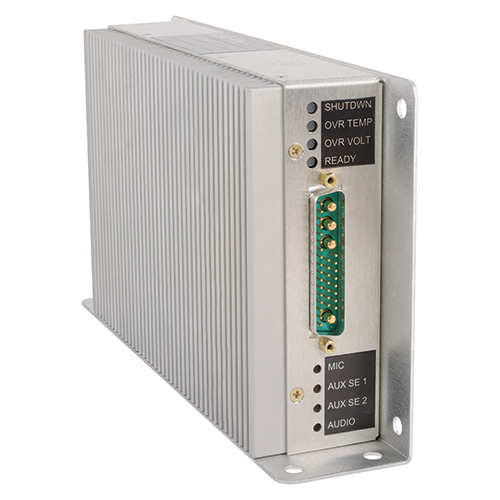

LSA400 Loud Speaker Amplifier | 400 – 600 Watt

LSA400 Loud Speaker Amplifier | 400 – 600 Watt
LSA400 Loud Speaker Amplifier | 400 – 600 Watt
LSA400 Loud Speaker Amplifier | 400 – 600 Watt

ANODYNE ELECTRONICS MFG (AEM)

EDMO#: LSA400-001

MFR#: LSA400-001

Tariff fee may apply

Tariff Warning Icon

Description

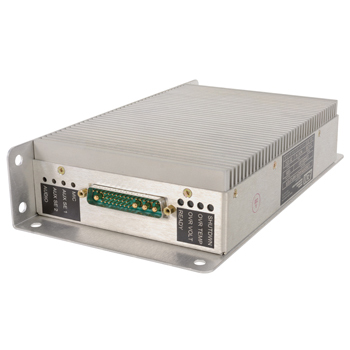

The LSA400-001 Loud Speaker Amplifier utilizes a highly efficient power supply and a Class-D Amplifier to produce 400 watts RMS (600 watts Peak) of output power with minimal distortion and noise. Designed with the latest technology, this amplifier is ideal for light- and medium-duty helicopters with single and twin turbine engines. The LSA400-001 is more compact and lighter than other comparable amplifier systems, and features flexible options for remote mounting either vertically or horizontally.

In addition, the LSA400 incorporates a ""smart"" power supply that modifies the amplifier output to meet the output load demand. It is designed for use with the LS300 or LS600 external speaker array and a siren controller as a complete system.

Features

  • Single differential speaker output capable of driving up to 600 Watts
  • Built-in protection circuits that keep the amplifier from being damaged, including “output short circuit” and “thermal shutdown”
  • Four audio inputs consisting of one microphone, two single ended inputs and one differential audio input to provide input source flexibility
  • Amplifier status annunciators for the protection circuits and user accessible  audio input adjustments are displayed externally near the D-Sub connector
  • Single PA ready output provides a switched ground for remote sensing or displaying of the amplifier ready state

Specifications

Weight:
3.7 lb

Dimensions:
5.45 x 2.04 x 9.8 in

Connector:
36 pin D-sub combination connector with jack post hardware

Audio Output Power:
up to 600 W

Audio Noise Level:
≥ 60 dB below rated output of the system

Input Current:
20A maximum @ 28 Vdc

Audio Impedance:
Microphone: 150Ω ± 10%
Auxiliary Differential: 1 kΩ ± 10%
Single-Ended Auxiliary: 1 KΩ ± 10%

Temperature:
-30 to 60°C (operating)
-55 to 85°C (survival)

Altitude:
25,000 ft, maximum

Humidity:
95% non-condensing

Product Codes

Mfr Part No :

LSA400-001

ECCN :

7A994

SCHEDULE B CODE :

8518.40.2000
