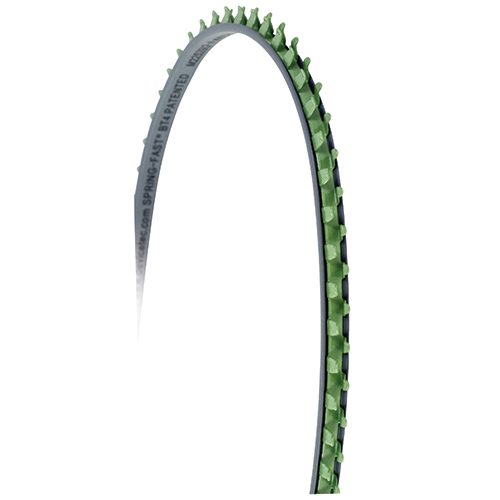

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.090 – 0.111 inch panels

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.090 – 0.111 inch panels

DEVICE TECHNOLOGIES

Call For Pricing
Available to order
EDMO # M/2-5R-25
MFR Part # M/2-5R-25
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast Mil-Spec composite grommet edging is designed for the high performance needs of the defense industry for use on airframes, tactical vehicles & ground based electronics. Grommet Edging is FAA Approved and installs in seconds allowing for immediate wire routing — no adhesive curing, clean up, or inspections. The NASM2259/2 series features an abrasion resistant subsurface and a polymer cushion to provided a soft surface for protecting wires and cables.

Features

  • This NASM2259/2 Mil-Spec grommet edging (EDMO# M/2-5R-25):
  • Fits panels 0.090 in – 0.111 inches
  • Width: 0.24 inches
  • comes on a 25 foot (7.6 m) reel
  • Features:
  • Meets military specifications
  • FAA Approved
  • Continuous heat up to 185°F (85°C)
  • Temperature operation as low as -40°F (-40°C)
  • High Corrosion Resistance
  • UL94 V-0 flammability rating
  • High shock and vibration resistance to RMS G 41.7
  • Superior dielectric strength
  • Continuous edge protection for 90° inside and outside corners
  • Continuous edge protection on inside and outside radius of any size

Specifications

  • Sheet Thickness:
    0.090 – 0.111 in (2.30 – 2.80 mm)
  • Width:
    0.24 in (6.10 mm)
  • Length
    : 25 ft roll (7.6 m)
  • Axis Conformity:
    two axis
  • Vicat Softening Point per ASTM D01525 Rate B:
    Thermoplastic Elastomer Cushion
  • Operating Temperature:
    -40°F to 185°F (-40°C to 85°C)
  • Dielectric Strength:
    1,500 volt @ 60 Hz
  • Substrate:
    Type 304 Stainless Steel
  • Taber Abrasion Resistance:
    TPE Cushion Per D1044 1 kg load, C17 wheel 25 mg 1,000 cycles
  • Finish:
    Epoxy Color:Lime green FED STD 595 Color Number: 14553
  • Salt Spray Hours:
    2,000 hr, ASTM B117.MIL-STD-202, Method 301
  • Immersion:
    Per NASM22529 and Skydrol Compatible
  • Random Shock & Vibration:
    MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J Duration 8 hr longitudinal and 8 hr perpendicular. rms 41.7
  • Flammability:
    UL94V-0 - File No. E113553 NZMT2 MIL-STD-202F, Method 111A FAR 25.853 Telcordia GR63 Core

Related Products

Product Codes

  • Mfr Part No
    M/2-5R-25
  • MIL SPEC
    M22529/2-5R-25
  • ECCN
    EAR99
  • MIL SPEC
    M22529/2-5R-25
  • SCHEDULE B CODE
    7326.90.8595
