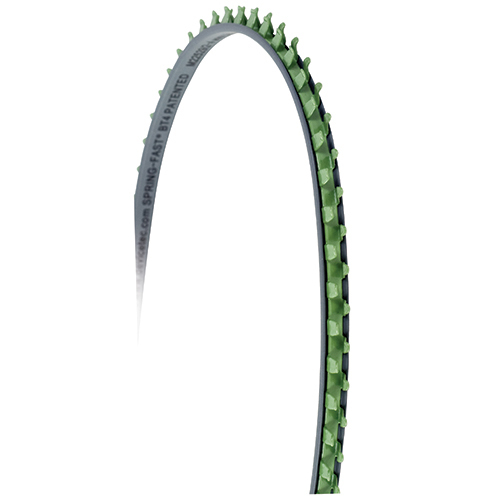

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.059 – 0.074 inch panels

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.059 – 0.074 inch panels
NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.059 – 0.074 inch panels
NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.059 – 0.074 inch panels

DEVICE TECHNOLOGIES

EDMO#: M/2-3R-25

MFR#: 04-M22529/2-3R-25

Description

Spring-Fast Mil-Spec composite grommet edging is designed for the high performance needs of the defense industry for use on airframes, tactical vehicles & ground based electronics. Grommet Edging is FAA Approved and installs in seconds allowing for immediate wire routing — no adhesive curing, clean up, or inspections. The NASM2259/2 series features an abrasion resistant subsurface and a polymer cushion to provided a soft surface for protecting wires and cables.

Features

This NASM2259/2 Mil-Spec grommet edging (EDMO# M/2-3R-25):

  • Fits panels 0.059 - 0.074 in thick
  • Width: 0.20 inches
  • Comes on a 25 foot roll

Features:

  • Meets military specifications
  • FAA Approved
  • Continuous heat up to 185°F (85°C)
  • Temperature operation as low as -40°F (-40°C)
  • High Corrosion Resistance
  • UL94 V-0 flammability rating
  • High shock and vibration resistance to RMS G 41.7
  • Superior dielectric strength
  • Continuous edge protection for 90° inside and outside corners
  • Continuous edge protection on inside and outside radius of any size

Specifications

Sheet Thickness:
0.059 in – 0.074 in (1.50 mm – 1.90 mm)

Width:
0.20 in (5.10 mm)

Length:
25 ft roll (7.6 m)

Axis Conformity:
2

Vicat Softening Point per ASTM D01525 Rate B:
Thermoplastic Elastomer Cushion

Operating Temperature:
-40°F to 185°F (-40°C to 85°C)

Dielectric Strength:
1,500 volt @ 60 Hz

Substrate:
Type 304 Stainless Steel

Taber Abrasion Resistance:
TPE Cushion Per D1044 1 kg load, C17 wheel 25 mg 1,000 cycles

Finish:
Epoxy
Color:Lime green FED STD 595
Color Number: 14553

Salt Spray Hours:
2,000 hr, ASTM B117.MIL-STD-202, Method 301

Immersion:
Per NASM22529 and Skydrol Compatible

Random Shock & Vibration:
MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J
Duration 8 hr longitudinal and 8 hr perpendicular. rms 41.7

Flammability:
UL94V-0 - File No. E113553 NZMT2
MIL-STD-202F, Method 111A
FAR 25.853 Telcordia GR63 Core

Product Codes

Mfr Part No :

04-M22529/2-3R-25

MIL SPEC :

M22529/2-3R-25

ECCN :

EAR99

MIL SPEC :

M22529/2-3R-25

NSN :

5325-99-172-1367

SCHEDULE B CODE :

7326.90.8595
