M81714/11 Series I Terminal Junction Splice | Single Wire, 16/20 Size

Product Description

Terminal Junction Splices provide a quick and efficient solution for customer wiring requirements. Single and dual wire splices meet MIL-T-81714/11 & 12 requirements and are highly resistant to temperature and fluids. These modules can be supplied with a wide variety of diodes, resistors, capacitors, and fuses within the splice itself. These splices meet MIL-81714/24 and allow users to incorporate them into a wire bundle without making changes in panels or boards.

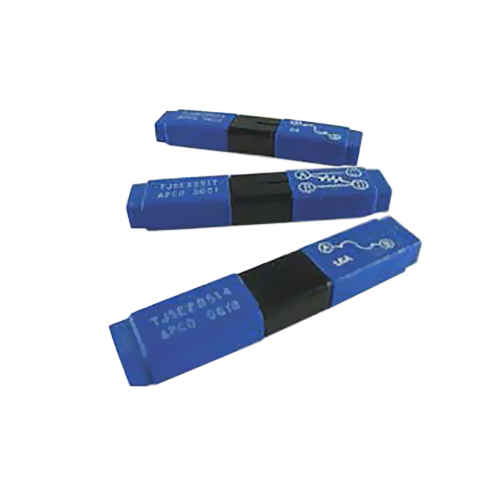

This series I terminal junction splice (EDMO# M817141120) is a single wire splice and accepts size 16/22 AWG wire sizes.

Specifications

• Size:
  16/20
• Operating Temperature:
  -65°C to 200°C
• Insulation Resistance:
  5,000 MΩ, Min.
• Dielectric Withstanding Voltage:
  1,500 VRMS @ sea level 200 VRMS @ 100,000 ft
• Vibration and Shock:
  Per AS-81714 Paragraph 3.5.5 & 3.5.8
• Body Material:
  Polyethermide per ASTM-D-5205
• Grommet Material:
  Silicone rubber per A-A-50588
• Internal Contact Material:
  Copper-alloy with gold finish

Product Codes

• Mfr Part No
  M81714/11-20D
• ECCN
  EAR99
• SCHEDULE B CODE
  8535.90.8040
