M81714/61 Series II Distribution Socket Junction Module | 1 Bus, Size 16/20

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # M81714610Y

MFR Part # M81714/61-0Y

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MIL-T-81714 series II, class D distribution socket junction modules provide a variety of contact combination for power distribution applications and have the same construction and features as standard Series II modules. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39029/22 socket and pin contacts.

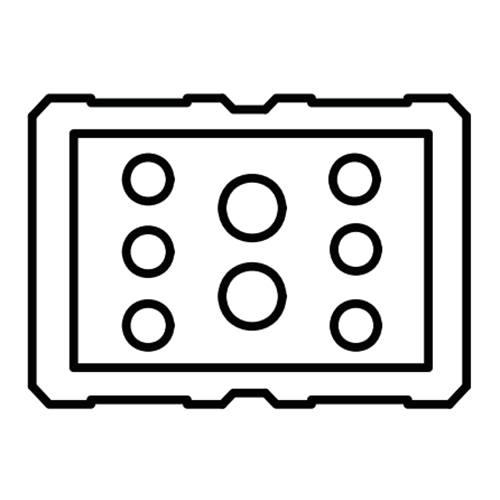

This distributed socket junction module (EDMO# M81714610Y) features a one bus configuration with two size 16 & six size 20 contacts.

Features

Assures superior performance in wire sealing, contact alignment and retention, and module extraction
Lightweight junction system
Feedback modules provide a full range of bussing solutions
Distribution modules provide a variety of contact combinations
Ground modules are available in both center stud and flange mounting options
Board mount pin modules can be soldered directly to printed circuit boards without requiring a mounting track

Specifications

Contacts:

6 size 20 (M39029/22-192)2 size 16 (M39029/22-193)
Temperature:

-65°C to 200°C
Insulation Resistance:

5,000 MΩ
Dielectric Withstanding Voltage:

1,500 VRMS @ Sea Level 200 VRMS @ 110,000 ft
Current Rating:

7.5A (size 20) 13A (size 16)
Vibration & Shock:

MIL-T-01714 Paragraph 3.5.5 & 3.5.8
Body Material:

polyetherimide per ASTM-D5205
Grommet Material:

silicon blend elastomer per A-A-59588
Contact Retainer Material:

stainless steel
Internal Pin & Socket Material:

hard gold-plated, copper alloy in accordance with MIL-G-45204
