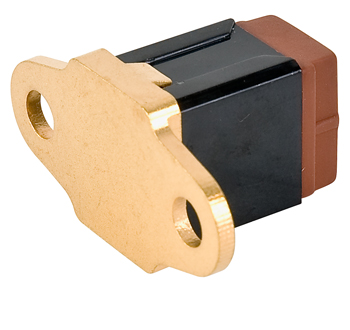

M81714/63 Series II Socket Ground Module | Flange Mount, 20/20 Contact Size

Product Description

The MIL-T-81714 series II, class D socket ground modules accommodates 12–26 AWG wire and provide a broad range of customized bussing arrangements. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39019/22 socket and pin contacts.

Flange mount, grounding modules may mound directly to a ground plane or ground lug to create a sealed multi-wire ground location. It may also be mounted to a bus bar for power distribution, sensing, or metering.

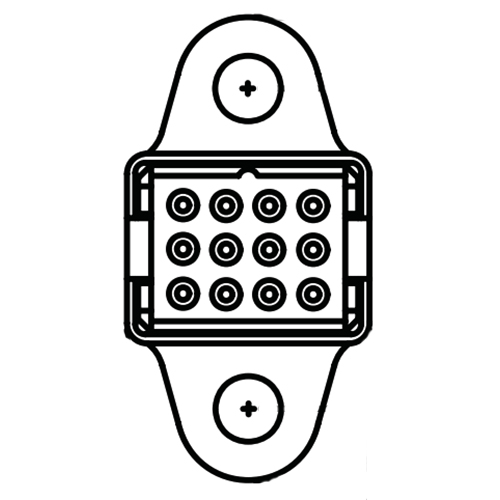

This series II flange mount socket ground module (EDMO# M8171463-) features 12 contact positions each of size 20/20 in a 4x3 configuration.

Specifications

• Contact Size & P/N:
  10/20 Size, MS39029/22-191 (qty 12)
• Temperature:
  -65°C to 200°C
• Current Rating:
  7.5A, size 20
• Vibration & Shock:
  MIL-T-81714 Paragraph 3.5.5 & 3.5.8
• Body Material:
  polyetherimide per ASTM-D5205
• Grommet Material:
  silicone blend elastomer per A-A-59588
• Flange/Shell Material:
  gold-plated copper alloy per SAE-AMS-2422 Tin-plating per ASTM-B545
• Contact Retainer Material:
  stainless steel
• Socket Contact Material:
  hard gold-plated, copper alloy in accordance with MIL-G-45204

Product Codes

• Mfr Part No
  BTJ720K01B-7067
• MIL SPEC
  M81714/63-20F
• ECCN
  EAR99
• MIL SPEC
  M81714/63-20F
• SCHEDULE B CODE
  8203.20.6060
