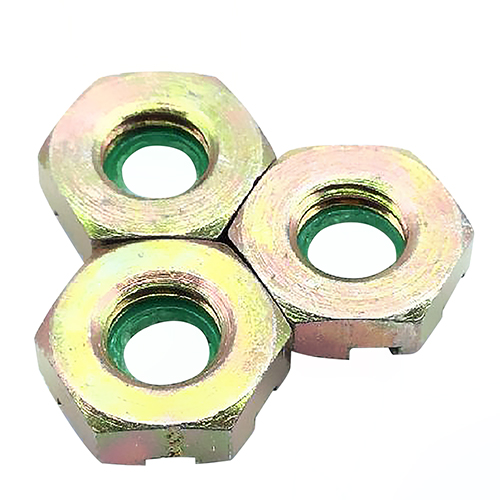

Military Standard Self-Locking Slotted Hexagon Nut

Product Description

This slotted, self-locking hexagon nut (EDMO# MS17826-4) has a 1/4-28 thread and metallic insert. It meets the MS17825 specifications.

Specifications

• hread Size:
  0.250 inches Thread Qty Per Inch (tpi): 28 Thread Series: Unjf (fine thread with external controlled root radius) Thread Class: 3b Thread Direction: Right-hand Temperature Rating: 250°F Surface Treatment Specification: Class 2 federal specification single treatment response except insert type 2 qq-p-416 Surface Treatment: Cadmium and chromate except insert Nut Height: Between 0.173 in and 0.203 in Nut Style: Hexagon slotted Material: Steel Material: Plastic polyamide locking insert Locking Feature: Prevailing torque with nonmetallic insert Bearing Surface Type: Washer faced Width Across Flats: Between 0.430 in and 0.439 in

Product Codes

• Mfr Part No
  MS17826-4
• MIL SPEC
  MS17826-4
• MIL SPEC
  MS17826-4
• SCHEDULE B CODE
  7408290000
