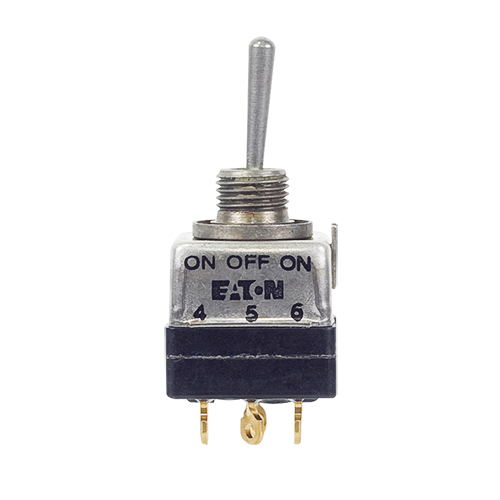

MS24656 Double Pole Miniature Switch | On/Off/On, 28 VDC


EDMO DISTRIBUTORS, INC

Call For Pricing
In stock
EDMO # MS24656211
MFR Part # MS24656211
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Commercial & MIL Spec Miniature Toggle switches feature positive action switching and mountable on a panel. The non-teasable mechanism assures that the switch will actuate and not ""hang up"" even when actuated very slowly. A silicone seal offer protection of the contacts from contaminates, and all metal components are corrosion resistant and designed to exceed military requirements.

Features

  • Positive action miniature toggle
  • Wiping acting contacts
  • Panel mount
  • Solder lug termination
  • Available in single & double pole
  • Sealed per MIL-DTL-8834
  • MIL qualified: MS90310-211/221/231/271/311, MS90311-211/221/231/271/311, MS24655-211/221/231/271/311, MS24656-211/221/231/271/311/331/341/351
  • Black matte finish also available
  • RoHS compliant

Specifications

  • Dimensions:
  • Specification
    0.587 x 0.556 x 1.359 in
  • Load (Sea Level):
  • Specification
    resistive 5A @ 28VDC / 2A @ 115VAC 60Hz / 3A @ 115VAC 400Hz / 25mA 5mV
  • Specification
    inductive: 1A @ 28VDC / 1A @ 115VAC 60Hz / 3A @ 115VAC 400Hz / 25mA 5mV
  • Electrical Life:
  • Specification
    20,000 cycles
  • Mechanical Life:
  • Specification
    40,000 cycles
  • Seal:
  • Specification
    Per MIL-DTL-8834
  • Operating Temperature:
  • Specification
    -55°C to 71°C
  • Handle Material:
  • Specification
    stainless steel with lusterless finish
  • Brushing Material:
  • Specification
    zinc alloy (15/32)
  • Cover Material:
  • Specification
    zinc alloy
  • Mounting Hardware:
  • Specification
    Hex nuts, lockwasher & keyway washer, silicone panel seal

Product Codes

  • Mfr Part No
    MS24656211
  • MIL SPEC
    MS24656-211
  • ECCN
    ear99
  • MIL SPEC
    MS24656-211
  • SCHEDULE B CODE
    8536.50.9065
