801 Series Military Panel Mount Indicator Light | Blue, Dimmable Lens


DIALIGHT

Call For Pricing
In stock
EDMO # MS25041-10
MFR Part # 801-1030-0334-504
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 801 Series panel mountable indicator lights meet military specifications and are available in several colors: red, green, yellow, blue, and clear. This light feature a Press-to-test function and mounts into a 15/32 inch diameter hole.

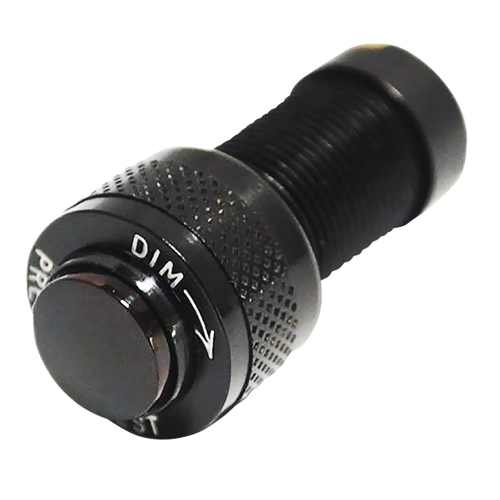

This military panel indicator light (EDMO# MS25041-10) has an blue light lens with a dimmable lens cap.

Features

  • Meets or exceeds MIL-L-3661B
  • Includes Press-to-test feature
  • 15/32 inch mounting hole diameter
  • T-1 3/4 Midget flange base

Also Purchased

Specifications

  • Mounting Hole Diameter:
    15/32 in (11.91 mm)
  • Light Source:
    T1 3/4 Midget
  • Color:
    Blue (MS25041-10)
  • Voltage:
    2.7V – 28V
  • Termination:
    Solder tabs
  • Mounting Style:
    Nut and washer
  • Replaceable lamp:
    Yes

Related Products

Product Codes

  • Mfr Part No
    801-1030-0334-504
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.50.9031
