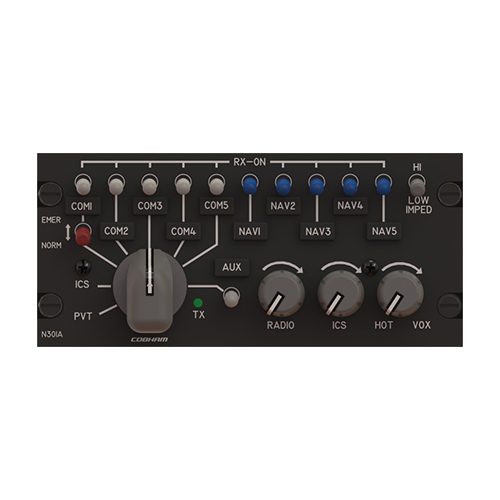

Single-User Audio Controller | For Kitchener Aero/Voya

Product Description

The N301A provides upgraded performance in a plug-compatible replacement for the A301-6. Improvements include: removable legends, enhanced noise suppression, and fully-floating inputs to remove ground-loop or common-mode noise. Both high and low impedance headsets are supported and mic outputs can be individually adjusted for each transceiver.

The N301A can be utilized in new installations where single or multiple user networks (up to 10 stations) are required. User-controlled features of the N301A include: split RX and ICS volume controls, VOX squelch control, an additional RX input for the AUX TX position, and an extra Nav Aid position. Additional internal inputs have been added to improve airframe alerting capability. Each panel is self-contained, with solid state modular plug-in construction, sealed switching devices for low noise, and gold switch/ relay contacts for longer lifespan. Other features of the N301A include: CVR output, TX annunciator light, emergency mode switch, and a second connector to permit supplemental inputs with two additional ICS busses to support more complex ICS networks. A VOX circuit and a front panel control on the N301A series provides the convenience of a voice activated intercom.

The N301A is available in standard configurations or customized panel layouts, with 5 Vdc or 28 Vdc standard white lighting, plus optional NVG friendly/ NVIS compliant lighting. This N301A (EDMO# N301A-021) is customized for the Kitchener Aero/Voya.

Specifications

• Weight:
  1.75 lb
• Dimensions:
  2.63 x 5.25 x 3.7 in
• Altitude:
  25,000 ft
• Headset:
  105/600 Ω /250 MW or 8 Ω /250 MW min
• Lighting:
  160 mA/28 VDC, 600 mA/5 VCD
• Power:
  22-32 Vdc @ 0.17 A, maximum

Product Codes

• Mfr Part No
  N301A-021
