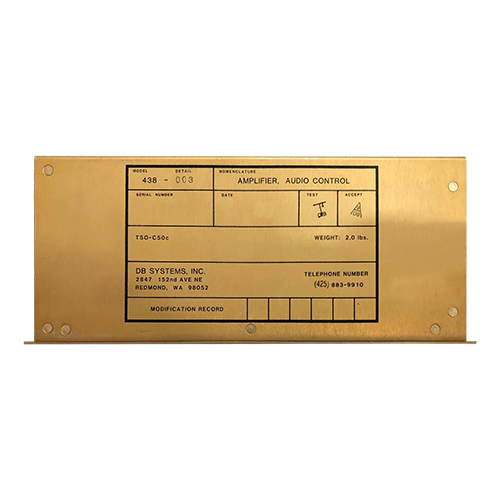

438-003 Audio Control Amplifier

CANYON AEROCONNECT

Call For Pricing

Available to order

EDMO # NAT438-003

MFR Part # 438-003

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Model 438 Audio Control Amplifier is a remotely controlled, electronic unit which operates upon command from switches and potentiometers in the cockpit. The amplifier is capable of switching and separately controlling the volume for up to 12 receiver inputs. It also switches five sidetone inputs and an interphone line.

Version (EDMO# 483-003) provides interphone operating levels for 8-station interphone system (37ohm interphone line) with more interphone audio to the speaker and headphone than the base model. Also increases the receiver levels to compensate for increased load on the receivers by multistation Model 438's.

Features

Two unswitched and unmuted inputs for aural warning input and an auxiliary input
Headphone and selected speaker outputs are isolated
Cockpit voice recorder output from headphone and interphone microphone audio
Microphone audio can be recorded on the cockpit voice recorder at all times
Pilot select COMM output produces a summation of COMM1 through COMM 4, DME 1 and 2, and the MKR 1 and 2 receiver inputs
Compatible with the model 240, 250, or 251 PSC audio input channel (or equivalent)
Speaker channel is powered through an internal fuse separate from the headphone channel
Receiver and operating modes are electronically switched
Electronic attenuator in each of the 12 receiver input channels
30 dB attenuator range control cockpit volume potentiometer
Selective voice or code filtering on four receiver audio inputs
Voice activated switch in series with microphone input
