Home / Navigation / GPS / NavPro 900F GPS Chart FishFinder | 9in Touchscreen, GPS/Chart Plotter with CHIRP Sounder, Internal GPS Antenna, Wifi, Polaris Chart Card

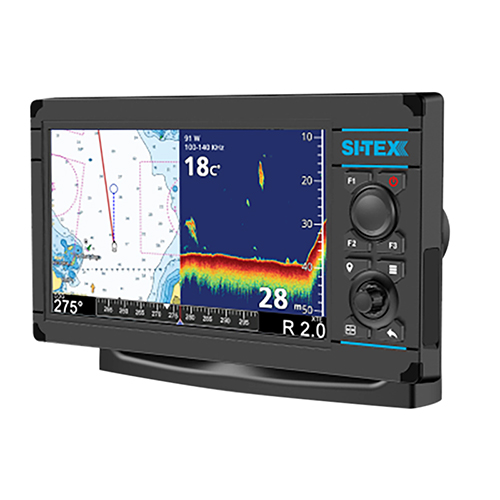

NavPro 900F GPS Chart FishFinder | 9in Touchscreen, GPS/Chart Plotter with CHIRP Sounder, Internal GPS Antenna, Wifi, Polaris Chart Card

Si-Tex

Call For Pricing

In stock

EDMO # NP900F/WF

MFR Part # NavPro 900F w/Wi-Fi

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The NavPro 900 multi-function display is easy to install on almost any vessels. Using built-in wifi, installation is simple when connecting to an optional high-resolution compact radome antenna. This NavPro unit is an affordable MFD capable of delivering excellent target resolution as well as professional grade features when wirelessly synced to SI-TEX's MDS-12 network radome. Radar targets can be layered Polaris charts for providing enhanced situational awareness and safety — even in the most challenging conditions.

This NavPro 900F (EDMO# NP900F/WF) includes a 9-inch touch screen GPS/chart plotter with CHIRP Sounder, Internal GPS antenna, wifi, and includes Polaris chart card.

Features

Nine-inch high resolution, hybrid touch screen display
Innovative yoke & swivel mount
NMEA-0183 & NMEA2000 interfacing
WIFI interface
Automatic software updates when in a WIFI coverage area
Captain Cloud automatically backs up all user data to a free cloud based data backup service for waypoints, marks, events, and track memories when in a WIFI coverage area
Mirror screen capability via bluetooth connection allows users to download mirror app to an Android smartphone to view and control the NavPro 900
C-Map 4D Cartography comes bundled with a US coastal & rivers continental 4D card in the box
Optional dedicated remote control Available
Flush mountable without requiring a special kit
New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs (NavPro-900F version)
CHIRP Sounder has scroll back screen memory allowing users to scroll back and pickoff a location to mark on Nav Chart
Uses the popular AIrmar CHIRP transducers with TX ID will automatically setup the sounder transducer
interconnect
Adapters available for allowing installations on older non-CHIRP transducers such as 50/200 kHz dual frequency transducers and 120kHz single frequency transducers allowing for retrofit installations
Internal high resolution 18Hz, 72-channel GPS receiver & antenna
Updated user interface allows for easy operation and navigation
Full AIS integration when interfaced to an AIS unit

Specifications

Dimensions:

10.9 x 6.8 x 3.7 in LCD Display Size: 9 in Display Brightness: 1,100 NITS Display Resolution: 800 x 480 Touch Screen: Yes, capacitive multi-touch Keyboard Backlight: yes Operating Voltage: 10 VDC — 35 VDC GPS Receiver: built-in high resolution 18 Hz, 72-channel GPS/GLONASS External GPS: yes, optional via 6-pin connector Network Connections: NMEA-2000 (optional cable required) dual NMEA-0183 input/output ports WIFI Connection: yes Bluetooth Connection: yes Waterproof Rating: IPX6 Operating Temperature Range: -10°C to 60°C
