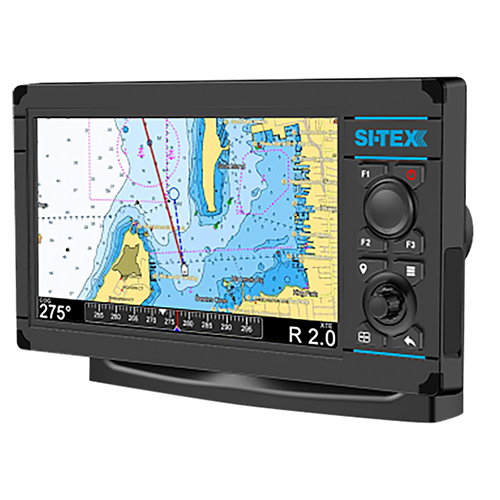

NavPro 900 Touch Screen GPS & Chart Plotter | 9-inch Display, Wi-Fi w/Internal GPS Antenna, Includes Polaris Card

Si-Tex

Call For Pricing

In stock

EDMO # NP900WF

MFR Part # NavPro 900 w/Wi-Fi

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The NavPro 900 multi-function display is easy to install on almost any vessels. Using built-in wifi, installation is simple when connecting to an optional high-resolution compact radome antenna. This NavPro unit is an affordable MFD capable of delivering excellent target resolution as well as professional grade features when wirelessly synced to SI-TEX's MDS-12 network radome. Radar targets can be layered Polaris charts for providing enhanced situational awareness and safety — even in the most challenging conditions.

This NavPro 900 (EDMO# NP900WF) includes a 9-inch touch screen GPS/chart plotter with CHIRP sounder, Internal GPS antenna, Wifi, and includes Polaris chart card.

Features

Nine-inch high-resolution hybrid touch screen display
Innovative yoke & swivel mount
NMEA-0183 & NMEA2000 interfacing
WIFI interface
Automatic software updates when in WIFI coverage
Captain Cloud automatically backs up all user data to a free cloud based data backup service for waypoints, marks, events, and track memories when in WIFI coverage
Mirror screen capability via bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from smart phone
Optional dedicated remote control available
Designed for easy flush mount without any special kit needed
CHIRP sounder with selectable 300W, 600W, & 1kW outputs (NavPro-900F version)
CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart
Uses the popular AIrmar CHIRP transducers with TX ID will automatically setup the sounder transducer interconnect
Adapters available to allow the unit to be installed on older non-CHIRP transducers
Traditional less expensive transducer option may be used
Internal high-resolution, 18Hz, 72-channel GPS receiver & antenna
Improved user interface makes the unit easier to operate
Full AIS integration when interfaced to an AIS unit

Specifications

Dimension:

10.9 x 6.8 x 3.7 in LCD Display Size: 9.0 in Display Brightness: 1,100 NITS Display Resolution: 800 x 480 Touch Screen: Yes, capacitive multi-touch Keyboard Backlight: Yes Operating Voltage: 10VDC — 35VDC GPS Receiver: Built-In high resolution 18Hz, 72 channel GPS/GLONASS external GPS: yes, optional via 6-pin connector Network Connections: NMEA-2000 (optional cable required) Dual NMEA: 0183 input/output ports WIFI Connection: yes Bluetooth Connection: yes Waterproof Rating: IPX6 Operating Temperature Range: -10C to 60°C
